Type 41

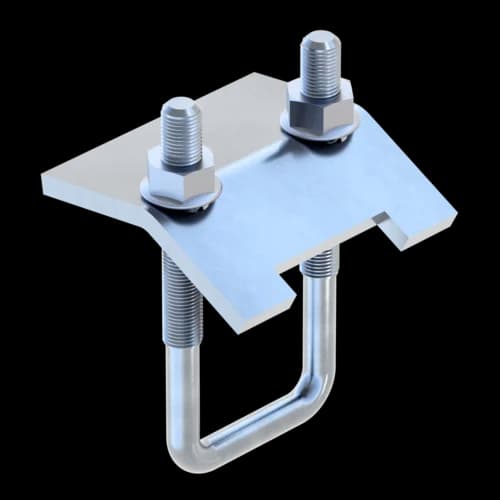

U-Holder SB 41
Group: 1331

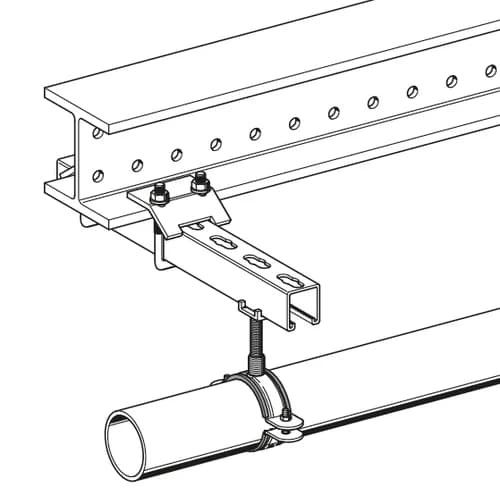

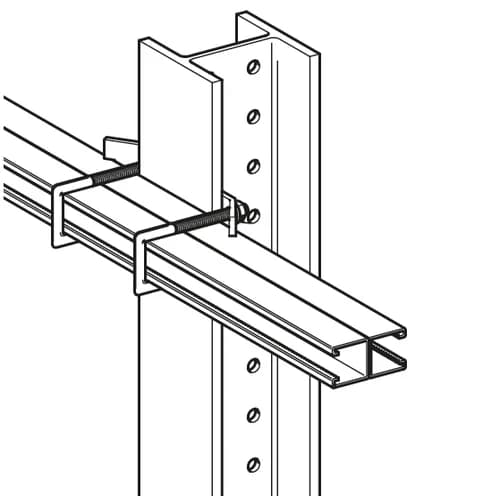

Clamping element for bi-lateral attachment of crossbars to steel beams, independent of the channel's opening
Overview of Types
General Information
Clamping element for bi-lateral attachment of crossbars to steel beams, independent from the channel's opening.
Certification
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. | VZ,perm. |
SB 41 M10 | 5,00 kN | 5,00 kN |
Max. perm. Load tension per Beam Clamp.
Software
This product is available in the following software.
Installation
To be used in pairs.
Length calculation = Beam/Girder flange thickness + min. 2 x 50 mm overhang
| Type | For channel height [mm] | Max. flange thickness [mm] | Tightening torque [Nm] |
|---|---|---|---|
| 41 - M8 | 20 - 62 | 16 | 20 |
| 41 - M10 | 20 - 62 | 16 | 30 |
| 41 D - M10 | 80 - 124 | 16 | 30 |
