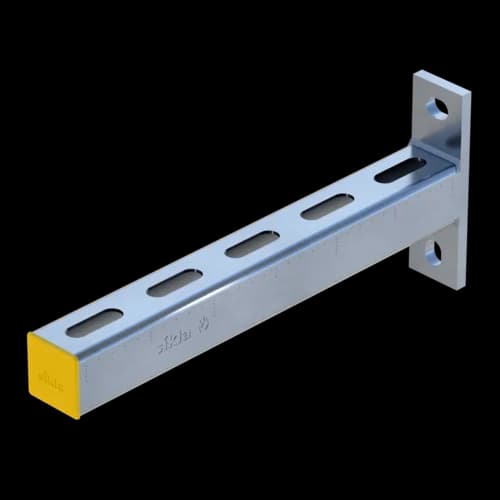

41/41-320

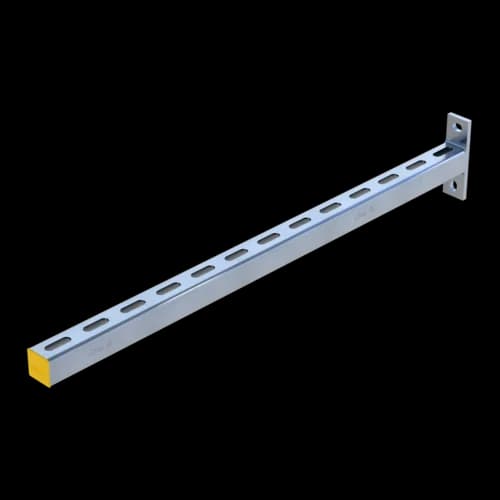

41/41-820

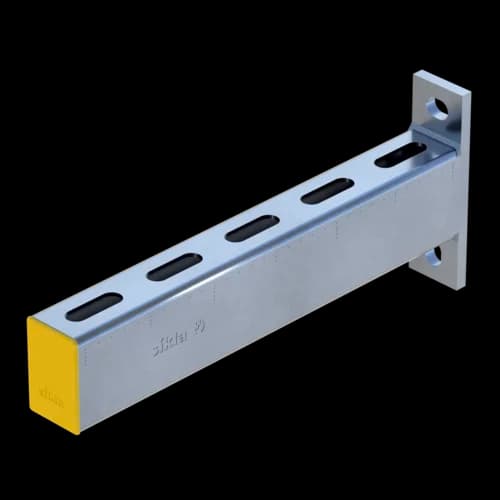

41/62-320
Cantilever Bracket AK 41
Group: 1354
Recommended for single-arm wall suspension or fixing to other building structures
Also available in a double version
Overview of Types
General Information
Recommended for single-armed wall suspension or fixing to other building structures. Also available as a double version.
Certification
Technical specifications
Permissible Tension σ{zul} | 160,00 N/mm² |
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VX,perm. | VX,perm. | -VY,perm. | VY,perm. | -VZ,perm. | VZ,perm. |
AK 41/41 - 200 | 17,38 kN | 17,38 kN | 14,41 kN | 14,41 kN | 24,36 kN | 24,36 kN |
AK 41/41 - 445 | 17,38 kN | 17,38 kN | 14,41 kN | 14,41 kN | 24,36 kN | 24,36 kN |
AK 41/41 -1010 | 17,38 kN | 17,38 kN | 14,41 kN | 14,41 kN | 24,36 kN | 24,36 kN |
Type | -MY,perm. | MY,perm. | -MZ,perm. | MZ,perm. |
AK 41/41 - 200 | 0,53 kNm | 0,53 kNm | 0,5 kNm | 0,5 kNm |
AK 41/41 - 445 | 0,53 kNm | 0,53 kNm | 0,5 kNm | 0,5 kNm |
AK 41/41 -1010 | 0,53 kNm | 0,53 kNm | 0,5 kNm | 0,5 kNm |
Software
This product is available in the following software.
Installation

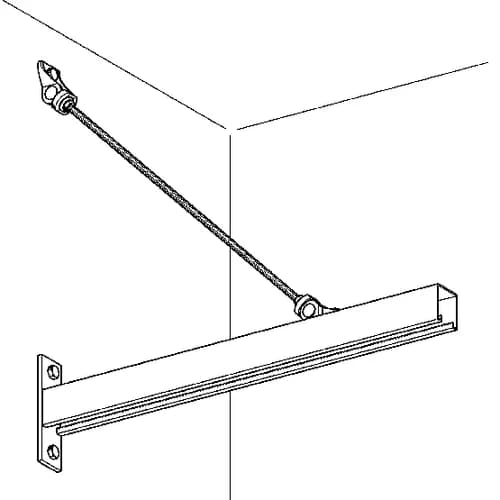

When used in combination with slide elements, a Tie Rod is absolutely essential for absorbing the forces running along the centre line of the pipe.
For cantilever lengths >= 500 mm we recommend the integration of a prop-up.
Documents
- Anchor Loads - Cantilever Bracket AK 41
PDF (0.18MB)
