TP F 100
TP F 100/160

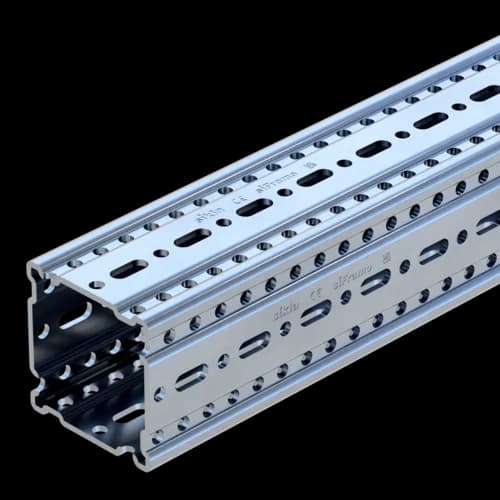

Beam Section TP F100 HCP
Group: A810
Galvanised box-section for fabrication of steel frames, simple two-dimensional supports and complex volumetric arrangements.
Closed profile shape enables high torsional rigidity and flexible attachment of connecting elements and pipe brackets on all four sides.
Stepless adjustment with form-fit through coordinated hole pattern and Form Lock Screw for maximum adaptibility and stability
Overview of Types
General Information
Galvanised box-section for fabrication of steel frames. Designed for both simple two-dimensional supports and complex volumetric arrangements. Holes are designed to receive Self Forming Screw FLS in conjunction with relevant components.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VX,perm. | VX,perm. | -VY,perm. | VY,perm. | -VZ,perm. | VZ,perm. |
TP F100 6M HCP | 423,60 kN | 423,60 kN | 31,90 kN | 31,90 kN | 31,90 kN | 31,90 kN |
TP F100/160 6M HCP | 500,00 kN | 500,00 kN | 39,40 kN | 39,40 kN | 38,60 kN | 38,60 kN |
Type | -MX,perm. | MX,perm. | -MY,perm. | MY,perm. | -MZ,perm. | MZ,perm. |
TP F100 6M HCP | 2,9 kNm | 2,9 kNm | 10,5 kNm | 10,50 kNm | 10,5 kNm | 10,5 kNm |
TP F100/160 6M HCP | 4,8 kNm | 4,8 kNm | 21,7 kNm | 21,70 kNm | 13,8 kNm | 13,8 kNm |
Type | Resistance torque Wy | Resistance torque Wz | Moment of inertia Iy | Moment of inertia Iz |
TP F100 6M HCP | 32,83 cm³ | 32,83 cm³ | 173,44 cm^4 | 173,44 cm^4 |
TP F100/160 6M HCP | 67,49 cm³ | 47,15 cm³ | 547,73 cm^4 | 269,90 cm^4 |
Type | Moment of inertia It | Cross-section A |
TP F100 6M HCP | 129,35 cm^4 | 7,60 cm² |
TP F100/160 6M HCP | 185,62 cm^4 | 14,22 cm² |
Software
This product is available in the following software.
Documents
- Static Guideline - siMotec
PDF (8.58MB)
