Beam Bracket TKO F100 HCP

Group: A823

Suitable for single-arm cantilevered mounting on walls, floors, and ceilings

Compatible with steel beams 100 and 120

Select a Type

Overview of Types

Info	Type	L_G	Weight	Quantity	Part number
	TKO F100- 400 HCP	413 mm	8.624 kg/pcs.	1 pcs.	113071

	TKO F100- 800 HCP	813 mm	12.784 kg/pcs.	1 pcs.	113072

	TKO F100-1200 HCP	1213 mm	17.5 kg/pcs.	1 pcs.	113421

	TKO F100/160- 800 HCP	813 mm	18.56 kg/pcs.	1 pcs.	113097

Documents

Approvals / ETA

siFramo - ETA-24/0471
PDF (2.15 MB)

Guidelines / Static

Static Guideline - siMotec
PDF (8.58 MB)

Installation

Type TKO F 100:
Depending on the situation, different options are recommended:
a) Directly to building structure: 4 x suitable wall anchors M12
b) To traditional steel beams between 80 – 120 mm flange dimensions: 1x Assembly Set 5P M12 S
c) To traditional steel beams > 120 flange dimension: with on-demand Adaptor Plate AP
d) To Sikla siMotec Steel Beams 100/120: with Bracket Plates FV 100/120 when positive mechanical connection required
Configuration: Base plate welded to Beam Section F 100

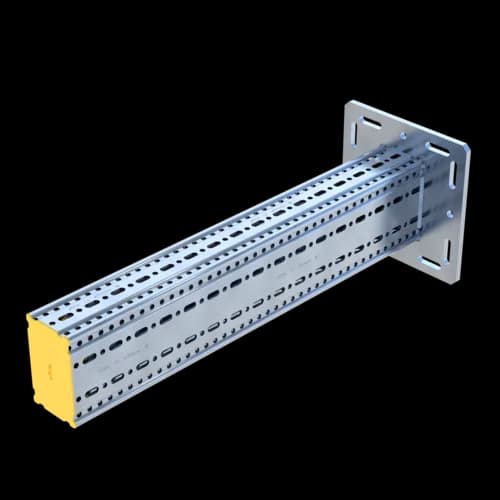

Type TKO F 100/160:
Depending on the situation, different options are recommended:
a) Directly to building structure: 4 x suitable wall anchors M12

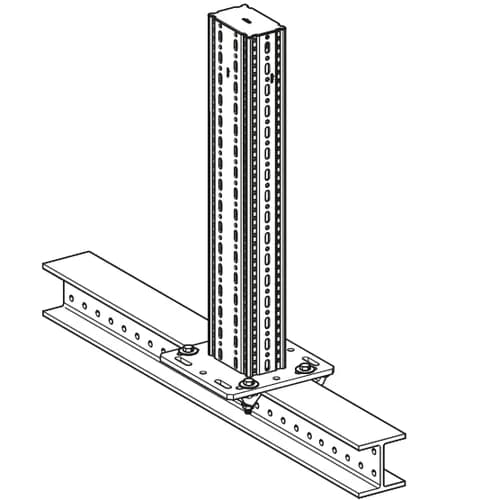

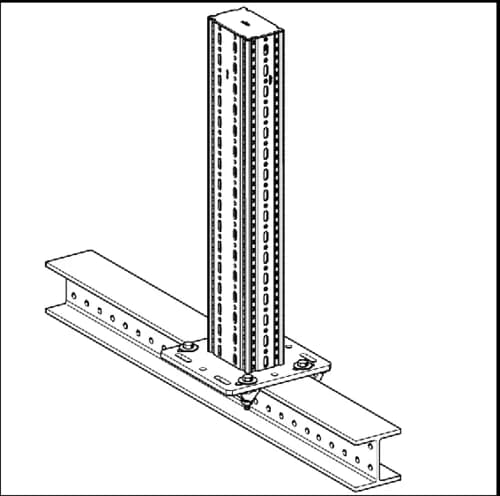

b) To traditional steel beams between 100 – 180 mm flange dimensions: 1x Assembly Set 5P M12 S
Configuration: Base plate welded to Beam Section F 100/160

Info	Type	L_G	Weight	Quantity	Part number
	TKO F100- 400 HCP	413 mm	8.624 kg/pcs.	1 pcs.	113071

	TKO F100- 800 HCP	813 mm	12.784 kg/pcs.	1 pcs.	113072

	TKO F100-1200 HCP	1213 mm	17.5 kg/pcs.	1 pcs.	113421

	TKO F100/160- 800 HCP	813 mm	18.56 kg/pcs.	1 pcs.	113097

General Information

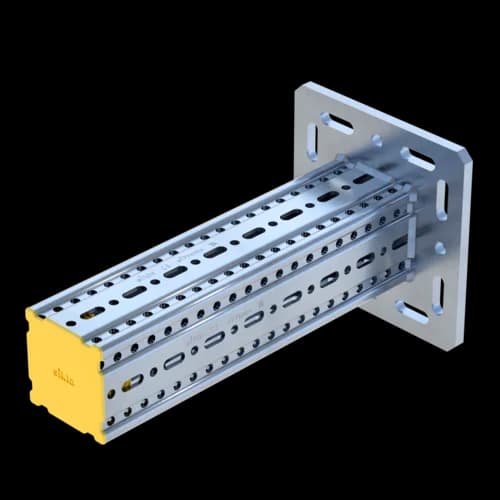

Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA/End Support WBD and 4 x Self Forming Screw FLS.

Certification

CE mark (Declaration of performance see downloads)
ETA-24/0471

Technical specifications

Primary element material	steel
Surface finish	HCP
Corrosion protection class	C4

Load range

Type	-V_X,perm.	V_X,perm.	-V_Y,perm.	V_Y,perm.	-V_Z,perm.	V_Z,perm.
TKO F100- 400 HCP	126,60 kN	126,60 kN	58,90 kN	58,90 kN	58,90 kN	58,90 kN
TKO F100- 800 HCP	126,60 kN	126,60 kN	58,90 kN	58,90 kN	58,90 kN	58,90 kN
TKO F100-1200 HCP	126,60 kN	126,60 kN	58,90 kN	58,90 kN	58,90 kN	58,90 kN
TKO F100/160- 800 HCP	124,00 kN	124,00 kN	67,90 kN	67,90 kN	79,20 kN	79,20 kN

Type	-M_X,perm.	M_X,perm.	-M_Y,perm.	M_Y,perm.	-M_Z,perm.	M_Z,perm.
TKO F100- 400 HCP	7,1 kNm	7,1 kNm

The specified load values are design loads Rd and include a partial safety factor γM2 = 1.25 (DIN EN 1993-1-8:2025-04, Table 4.1)
A partial safety factor of γG = 1.35 (DIN EN 1990:2021-10, Table A1.2(B)) must be taken into account for permanent loads.

Also available with DualShield for high corrosion protection within C5H environments.
