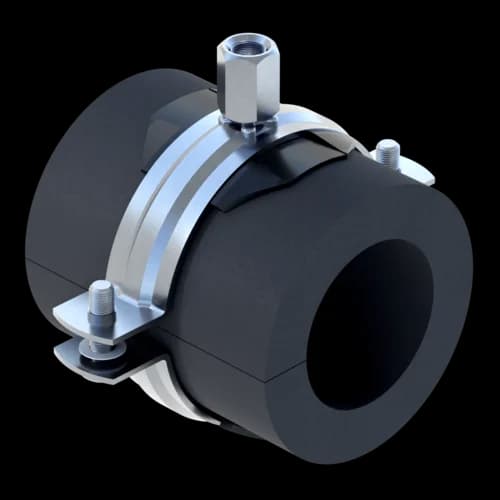

Chilled Water Clamp AKS 13
Group: 1258
Suitable for preventing condensation at pipe support locations of chilled-water and cold-water pipelines and as an insulation clamp for heating systems
Suitable for soundproof installation according to DIN 4109
Overview of Types
General Information
Suitable for secure prevention of condensation at the pipe support location of chilled-water and cold-water pipelines as well as insulation clamp for heating systems. Suitable for soundproof installation according to DIN 4109.
Certification
Technical specifications
Max. temperature | 110 °C |
Min. temperature | 0 °C |
Thermal Conductivity λ {0°C} | λ ≤ 0,038 W/Mk |
Fire Performance | EL according to DIN EN 13501-1 |
Water vapour diffusion resistance factor | µ ≥ 7.000 |
Storage condition | In dry, clean rooms with humidity 50 - 70% and room temperature 0 - 35°C |
Material base body | steel |
Material insulation body | PUR |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Software
This product is available in the following software.
Installation
Enclose the insulation insert around the pipe, remove the protective paper strip on both sides of the insert and merge the longitudinal seam. Fix the pipe clamp in the centre of the plastic spacers. Lag the pipe insulation to each end of the insulation insert.
For horizontal installations to a wall-face, the plastic spacers on the insulation insert have to coincide with the pipe clamp flanges positioned over and under the pipe. Support distances see Installation Guidelines, chapter 'Pipe support'.
