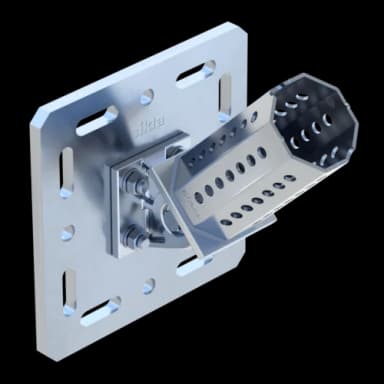

Pivot Joint GE F - ST F 80 HCP
4 Variants
A bracing element for single-armed cantilevers with the siFramo F80 support system on steel beams with flange widths between 80 and 300 mm, as well as for bracing frame structures. The pivot can be installed with angles from 25° to 155°.
Pivot Joint GE F - ST F100 HCP
4 Variants
A bracing element for single-armed cantilevers with the siFramo 100 support system on steel beams with flange widths between 80 and 300 mm, as well as for bracing frame structures. The pivot can be installed with angles from 25° to 155°.

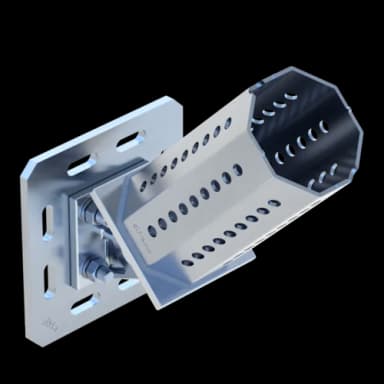

Pivot Joint GE F - ST F100/160 HCP
2 Variants
For supporting single-arm cantilevers in conjunction with the siFramo 100/160 support system and for bracing frame structures.
The angle α can be continuously varied between 25° and 155°.
Pivot Joint GE F 80 - 80 HCP
1 Variant
Applicable as bracing element of single-arm cantilevers in conjunction with System siFramo 80 and for the reinforcement of frame constructions. The angle a is continuously variable between 25° and 155°.

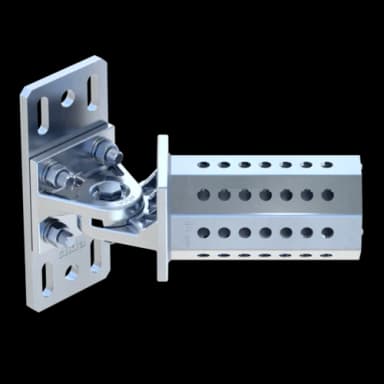

Pivot Joint GE F 80 - 80 q HCP
1 Variant
Applicable as bracing element of single-arm cantilevers in conjunction with System siFramo 80 and for the reinforcement of frame constructions. The angle a is continuously variable between 25° and 155°.
Pivot Joint GE F100 HCP
2 Variants
Applicable as bracing element of single-arm cantilevers in conjunction with System siFramo 100 and for the reinforcement of frame constructions. For type F 100 - F 80, a TP F 80 beam section is used for reinforcement. For type F 100 - F 100, a TP F 100 beam section is used. The angle a is continuously variable between 25° and 155°.

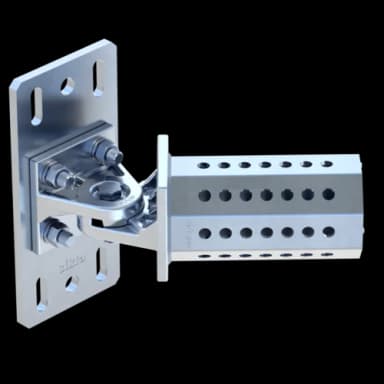

Pivot Joint GE F100 q HCP
2 Variants
Applicable as bracing element of single-arm cantilevers in conjunction with System siFramo 100 and for the reinforcement of frame constructions. For type F 100 - F 80, a TP F 80 beam section is used for reinforcement. For type F 100 - F 100, a TP F 100 beam section is used. The angle a is continuously variable between 25° and 155°.

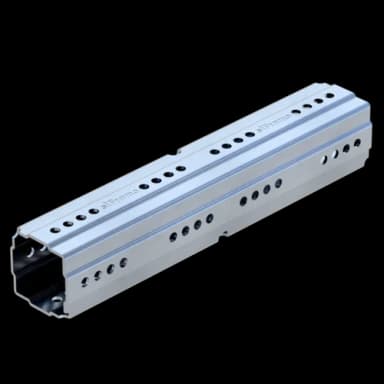

Profile Coupling PK F 80 HCP
2 Variants
Internal splice connecting element for Beam Section TP F 80, particularly suitable for vertical extension. Should the component be used for horizontal application, the bending moment needs to be considered.

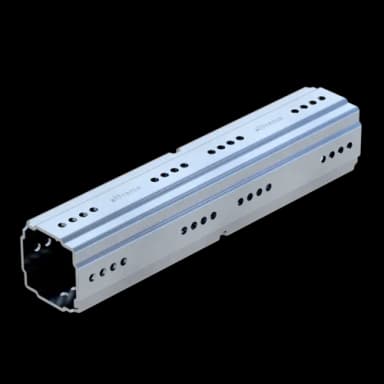

Profile Coupling PK F100 HCP
2 Variants
Internal splice connecting element for TP F 100 Beam Section, particularly suitable for vertical extension. Should the component be used for horizontal application, the bending moment needs to be considered.

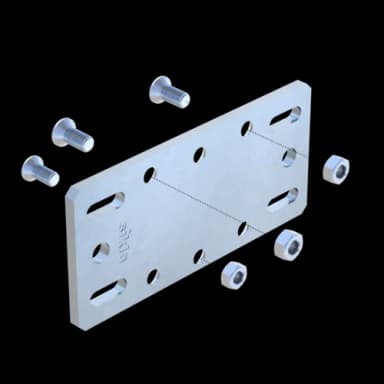

Railing Support GLA F 80 HCP
1 Variant
Adapter plate for connecting railings to the TP F 80 profile. Suitable for railing components of sizes 7 and 8 – 1 1/4‘ and 1 1/2’ tubes.
Railing Support GLA F100 HCP
1 Variant
Adapter plate for connecting railings to the TP F100 profile. Suitable for railing components of sizes 7 and 8 – 1 1/4‘ and 1 1/2’ tubes.

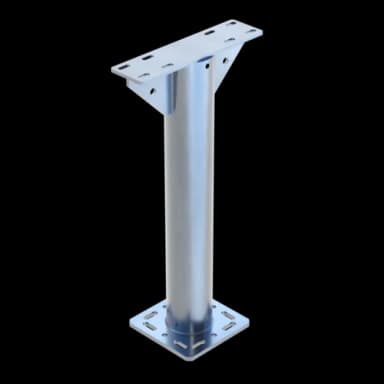

Roof Connector DF AH HCP
1 Variant
Enables direct connection of TP F 100 and TP F 100/160 support profiles on various roof types.

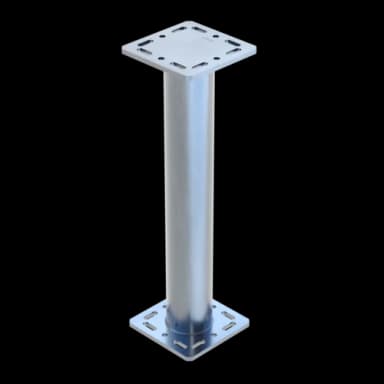

Roof Connector DF AV HCP
1 Variant
Enables direct connection of constructions with siFramo using WBD brackets F 80/100 of size 80/120 or girder brackets F 80/100 on various roof types.

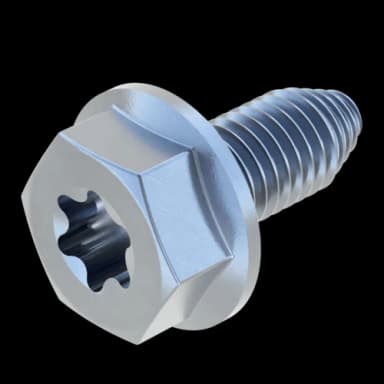

Self Forming Screw FLS F
1 Variant
The Self Forming Screw FLS creates its own thread inside the wall of the siFramo pilot hole. During the screw-driving operation, the base steel is re-shaped and hardened to form an air-tight seal between the threads of the screw and the surrounding steel, making it exceptionally resistant to vibrational loosening and increasing fastening strength.

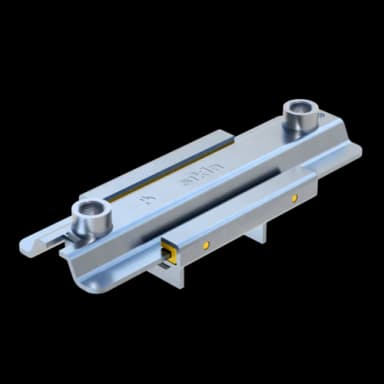

Slide Set GS F 80 1G HCP
2 Variants
Heavy-duty Slide Set for single and double-connection to siFramo TP F 80 beam sections. 1/2' thread connection allows direct connection to pipe clamp Stabil I -1/2' by means of threaded tube without further adaption parts.

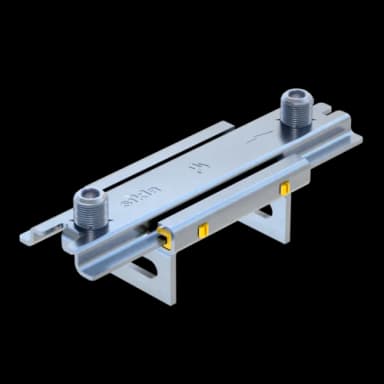

Slide Set GS F 80 2G HCP
2 Variants
Slide Set for single or twin-clamp connection designed to clutch the Beam Section F80 via 2 x Self Forming Screws FLS.

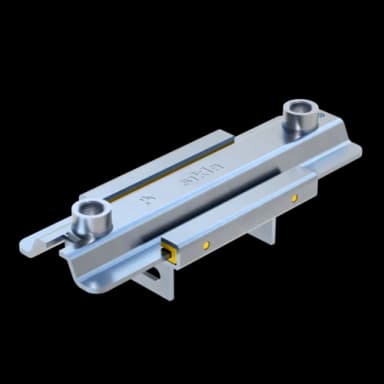

Slide Set GS F100 1G HCP
2 Variants
Heavy-duty Slide Set for single and twin-clamp connection to siFramo TP F 100 beam sections. 1/2' thread connection allows direct connection to pipe clamp Stabil I -1/2' by means of threaded tube without further adaption parts.

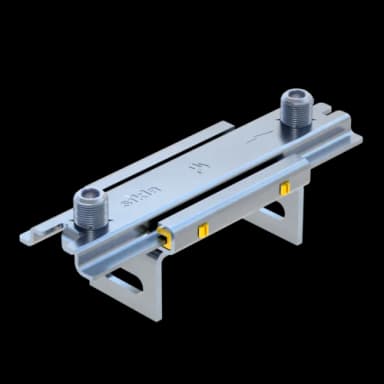

Slide Set GS F100 2G2 HCP
1 Variant
Slide Set for twin-clamp connection designed to clutch the Beam Section F100 fixed by 2 x Self Forming Screws FLS.

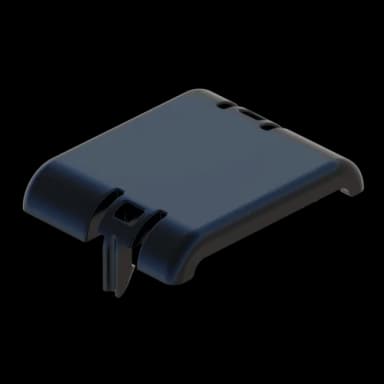

Support U-UB F 80
1 Variant
Insulation and surface protection pad to be used on demand when a pipes’ expansion and contraction occurs directly on the F80 section.
Support U-UB F100
1 Variant
Insulation and surface protection pad to be used on demand when a pipes expansion and contraction occurs directly on the TP F section.
U Bolt Fastening UB F HCP
5 Variants
U Bolt Fastening to connect standard U-Bolts required for pipework to the supporting Beam Sections, Cantilever Brackets and Beam Brackets F80 or F100.

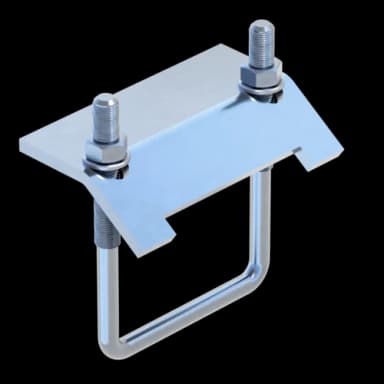

U-Holder SB F 80 HCP
4 Variants
Pre-assembled component to clamp Beam Section F80, to the flange side of traditional steel sections.

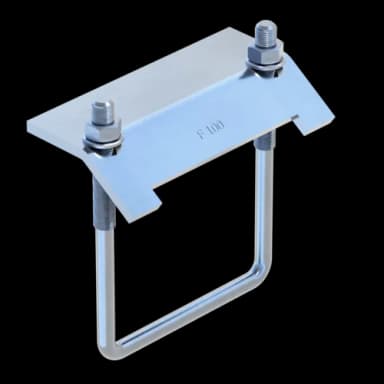

U-Holder SB F100 HCP
3 Variants
Pre-assembled component to clamp Beam Section F100 to the flange side of traditional steel sections.
Welding Adapter ASA F 80 HCP
2 Variants
Welding plate with square insert to receive siFramo section. May be implemented into the structural steel design in anticipation of siFramo-frames or used in situ as a connection element when clamping is not an option but hot works are permitted.
