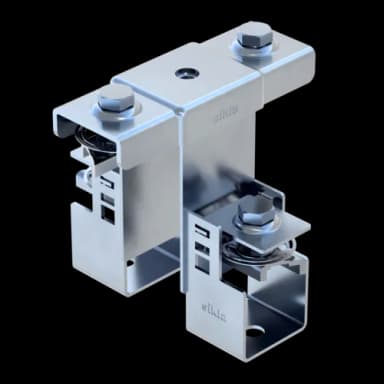

Cross Tee IR-M
2 Variants
The Cross Tee IR-M is used to create a cross connection for installation grids made of Channels 41. In combination with Channels 41 and the End Tee IR-E a complete installation grid can be created. For the connection to the structure the Tension Tie Rod Disc IR, which enables a y-suspension, can be used if necessary. An installation grid system allows a cost- and time-saving adjustment of the pipe and cable supplies. New production process requirements can be implemented efficiently. Saving time by means of Pressix CC-components. Flexible choice of Channels. Simple modificaton of End and Cross Tees.
End Cap ADK 27
4 Variants
End Cap for clean finish at the end of Sikla Channel MS 27.
End Cap ADK 41
8 Variants
End Cap for clean finish at the end of Sikla Channel MS. Double channels require 2 End Caps.

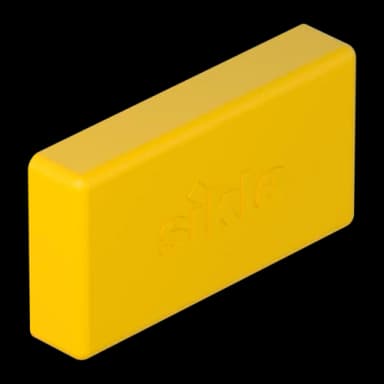

End Cap ADK WK 300-550
1 Variant
End Cap for clean finish at the end of Support Brackets WK 300/200 and 550/350.
End Support WBD 41
12 Variants
In combination with a Sikla Channel MS 41, End Support WBD is particularly suitable for setting up support structures attached to walls, floors and ceilings as a base for frame structures made of Sikla Channels. The generous dimensions and the diamond shape of the mounting plate provide a high bending moment and safely stabilise lateral loads.
End Support WBD 41 A4
1 Variant
In combination with a channel, End Support WBD 41 ss is particularly suitable for setting up support structures attached to walls, floors and ceilings as a base for frame structures.
End Support WBD 41 HCP
4 Variants
In combination with a Sikla Channel MS 41, End Support WBD is particularly suitable for setting up structures attached to walls, floors and ceilings as a base for frame structures made of Sikla Channels. The generous dimensions and the diamond shape of the mounting plate provide for a high bending moment and safely stabilise lateral loads. The HCP design allows for use in areas with higher corrosion protection requirements.

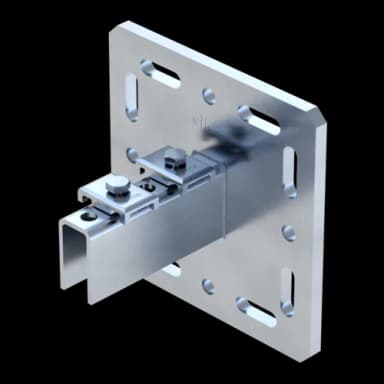

End Support WBD C 41 HCP
3 Variants
In combination with Sikla Channels MS 41/41, End Support WBD is ideal for setting up support structures attached to walls, floors and ceilings and for direct fixing to steel beams. In combination with Joining Plate AP, a fixing to beams with flange width > 120 mm is possible.

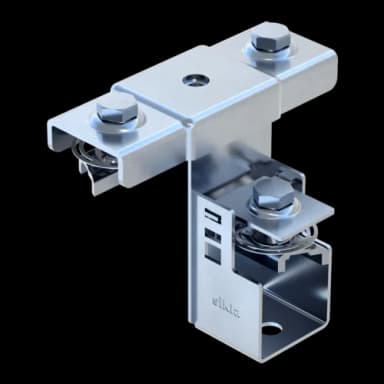

End Tee IR-E
2 Variants
The Cross Tee IR-E is used to create an end connection for installation grids made of Channels 41. In combination with Channels 41 and the Cross Tee IR-M a complete installation grid can be created. For the connection to the structure the Tension Tie Rod Disc IR, which enables a y-suspension, can be used if necessary. An installation grid system allows a cost- and time-saving adjustment of the pipe and cable supplies. New production process requirements can be implemented efficiently. Saving time by means of Pressix CC-components. Flexible choice of Channels. Simple modificaton of End and Cross Tees.

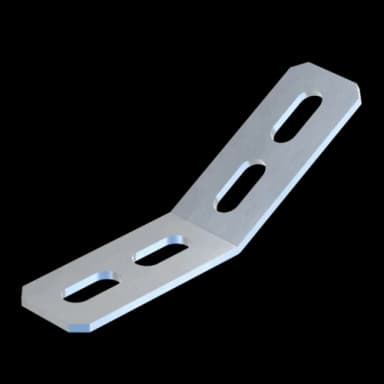

Fixing Bracket MW 30° HCP
1 Variant
Suitable for Sikla Channels MS 41. Useful addition to Support Brackets for integration in crossbars and other structures composed of hot-dipped galvanised channels.
Fixing Bracket MW 45°
1 Variant
Suitable for Sikla Channel System 41. Useful addition to Support Brackets for integration in crossbars and other structures composed of channels with a width of 41 mm.
Fixing Bracket MW 45° A4
1 Variant
Useful addition to Support Brackets for integration in crossbars and other structures composed of stainless steel channels.
Fixing Bracket MW 45° HCP
1 Variant
Suitable for Sikla Channels MS 41. Useful addition to Support Brackets for integration in crossbars and other structures composed of hot-dipped galvanised channels.

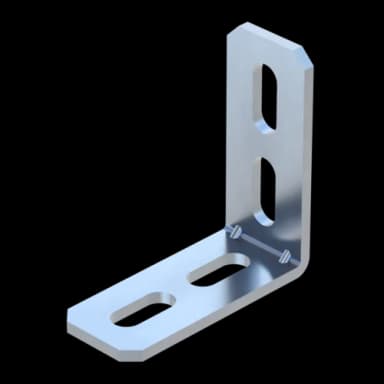

Fixing Bracket MW 90°
1 Variant
Suitable for Sikla Channel System 41. Useful addition to Support Brackets for integration in crossbars and other structures composed of channels with a width of 41 mm.
Fixing Bracket MW 90° A4
1 Variant
Useful addition to Support Brackets for integration in crossbars and other structures composed of stainless steel channels.
Fixing Bracket MW 90° HCP
1 Variant
Suitable for Sikla Channels MS 41. Useful addition to Support Brackets for integration in crossbars and other structures composed of hot-dipped galvanised channels.

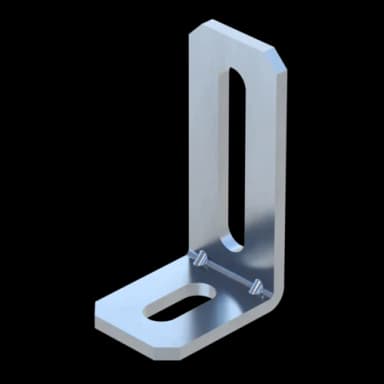

Fixing Bracket MW 90° LL
2 Variants
Suitable for Sikla Channel System 41. Fixing Bracket with wide adjusting range for construction of cross bars and other structures composed of channels.
Fixing Bracket MW S
5 Variants
Designed for general mounting purposes as a direct lateral attachment link integrated in binding and bridging beams of concrete or wood, and for similar applications. It may serve as a connecting bracket for framework structures consisting of channels. Sprinkler systems: See 'Technical Data'. Types 60/30/90 and 90/60/90 are designed for attachment of pipes to wooden truss according to VdS CEA-standard 15.2.2.
Fixing Bracket MW S HCP
2 Variants
Designed for general mounting purposes as a direct lateral attachment link integrated in binding and bridging beams of concrete or wood, and for similar applications. It may serve as a connecting bracket for framework structures consisting of channels.
Fixing Bracket MW W S A4
1 Variant
Fixing Bracket suitable for frame construction and cross bars composed of channels, as well as for connection to floor, wall and ceiling. Thanks to the high stiffness resulting from the shape also suitable as Support Bracket for projecting racks. When used as support for cross bars, their load capacity increases.

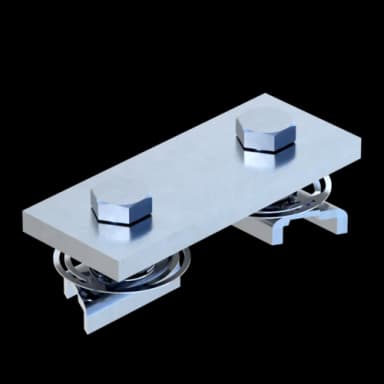

Flat Fitting ECO CC 1
1 Variant
Pre-assembled connecting element, specifically for frame constructions made of channel. Optimised connection technology, e.g. for creating a T-connection with the Sikla MS 41 system. Locks automatically when being put in place, and supports its own weight. Secure, form-locking, non-positive connection. Completely pre-assembled with serrated CC nut and clamping screw M10. High stiffness.

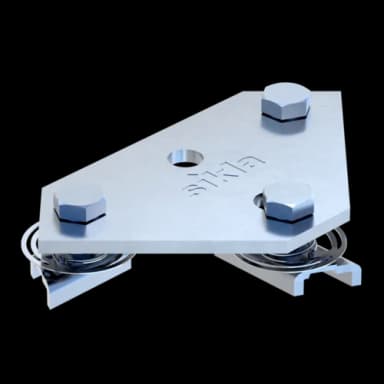

Flat Fitting ECO CC 2
1 Variant
Pre-assembled connecting element, specifically for frame constructions made of channel. Optimised connection technology, e.g. for creating a T-connection or V-stuts with the Sikla MS 41 system. Locks automatically when being put in place, and supports its own weight. Secure, form-locking, non-positive connection. Completely pre-assembled with serrated CC nut and clamping screw M10. High stiffness.

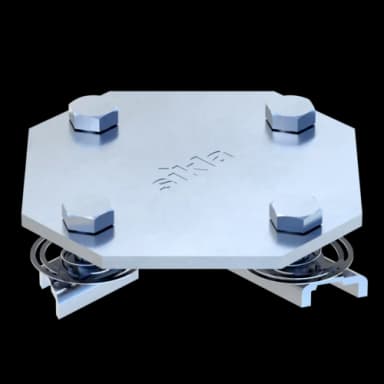

Flat Fitting ECO CC 3
1 Variant
Pre-assembled connecting element, specifically for frame constructions made of channel. Optimised connection technology, e.g. for creating a X-connection with the Sikla MS 41 system. Locks automatically when being put in place, and supports its own weight. Secure, form-locking, non-positive connection. Completely pre-assembled with serrated CC nut and clamping screw M10. High stiffness.
Hexagon Nut NT A4
2 Variants
Channel Nut 27 for channels in stainless steel with a width of 27 mm.
