Welding Plate SPL UNI HCP
Group: A430
Part number 113636
Can also be mounted on the TP F beam sections for larger attachment surfaces
Can also be mounted on the TP F beam sections for larger attachment surfaces
Technical Data
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
Installation
Depending on the type, different installation methods are recommended:

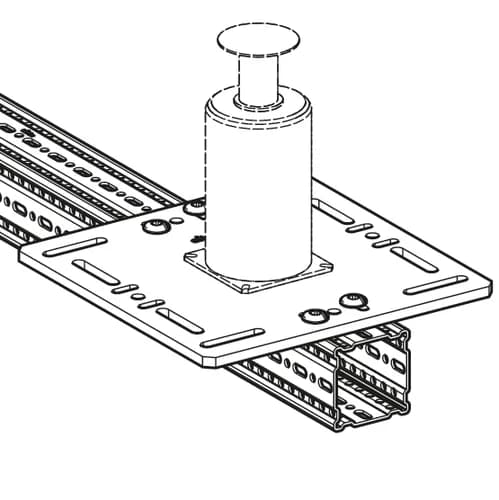

a) Installation of SPL universal with Flange Screws SCR FLA TT M10 x 30 (part no. 116479) to Beam Section TP F.

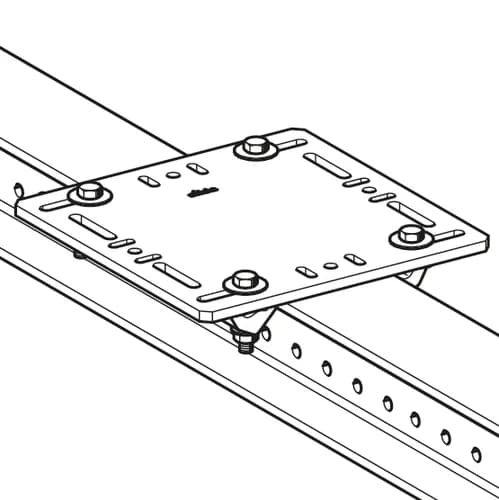

b) Installation of SPL universal by means of 1 Assembly Set 5P M12 S to primary steel with flange width between 100 and 300 mm.
