Welding Adapter ASA F100 HCP

Group: A828

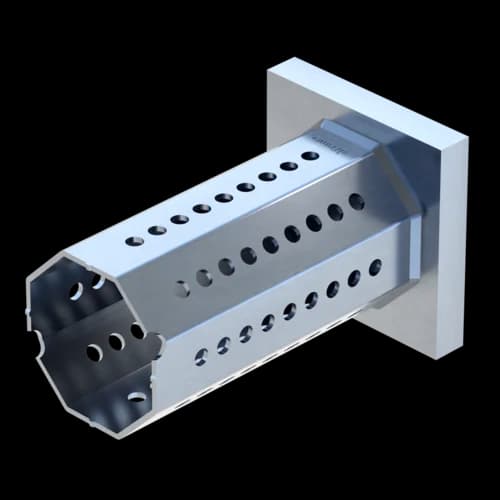

Welding plate with square insert to receive siFramo section

Select a Type

Overview of Types
General Information
Installation

Overview of Types

General Information

Welding plate with square insert to receive siFramo section. May be implemented into the structural steel design in anticipation of siFramo-frames or used in situ as a connection element when clamping is not an option but hot works are permitted.

Certification

CE mark (Declaration of performance see downloads)

Technical specifications

Material base body	steel
Surface	HCP
Corossion class	C4

Load range

Type	-V_X,perm.	V_X,perm.	-V_Y,perm.	V_Y,perm.	-V_Z,perm.	V_Z,perm.
ASA-4KT F100 HCP	39,40 kN	39,40 kN	58,90 kN	58,90 kN	58,90 kN	58,90 kN
ASA-4KT F100/160 HCP	68,20 kN	68,20 kN	67,90 kN	67,90 kN	79,20 kN	79,20 kN
ASA-8KT F100 HCP	26,60 kN	26,60 kN	43,60 kN	43,60 kN	43,60 kN	43,60 kN

Type	-M_X,perm.	M_X,perm.	-M_Y,perm.	M_Y,perm.	-M_Z,perm.	M_Z,perm.
ASA-4KT F100 HCP	7,1 kNm	7,1 kNm	8,5 kNm	8,50 kNm	8,5 kNm	8,5 kNm
ASA-4KT F100/160 HCP	11,3 kNm	11,3 kNm	13,1 kNm	13,10 kNm	8,6 kNm	8,6 kNm
ASA-8KT F100 HCP	3,3 kNm	3,3 kNm	5,4 kNm	5,40 kNm	5,4 kNm	5,4 kNm

Also available with DUALSHIELD for high corrosion protection within C5H environments.

Software

This product is available in the following software.

Installation

The welding plate of the ASA can be welded directly without previous treatment due to a corrosion-resistant weld-thru coating which is compatible with both the HDG surface of the siFramo section and the health and safety requirements of the welding process. Once the ASA adapter has been connected, the coating may also receive paint without previous treatment.

The siFramo section must be connected to the Welding Adapter ASA with 4 x Self Forming Screw FLS. 8 pieces of Self Forming Screws are to be used for the Beam Section TP F 100/160, whereas 4 Self Forming Screws have to be screwed together on the flat flanks' opposite sides.
