U Bolt Support UBF HCP
Group: 1810
Part number 194188
For simple combination of U Bolt and Channel
Suitable for all Sikla Channels MS 41

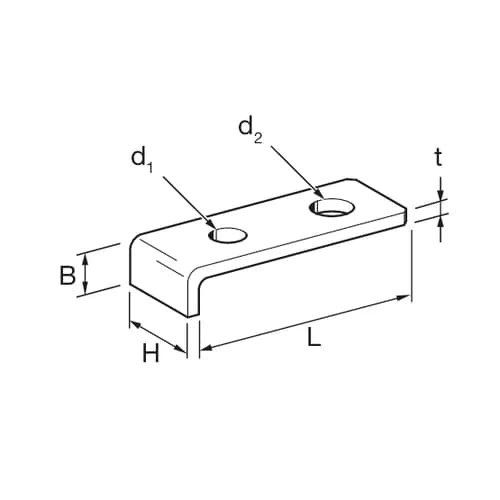

Technical Data
B | 15 mm |
d1 | 11 mm |
d2 | 13 mm |
H | 30 mm |
L | 75 mm |
t | 4 mm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
Installation
Simple attachment with Channel Nuts M10 and Hexagon Bolts M10x25.
For each U bolt each one set has to be used.
