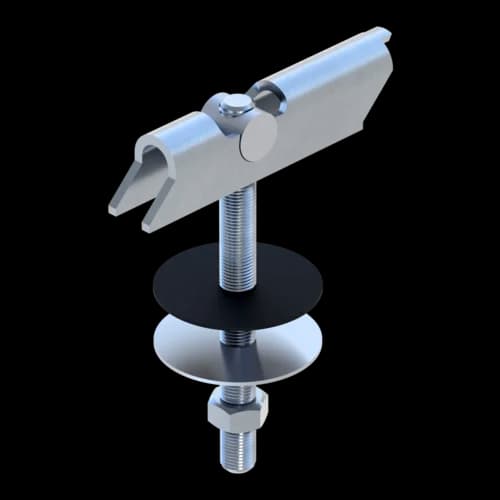

Type M8

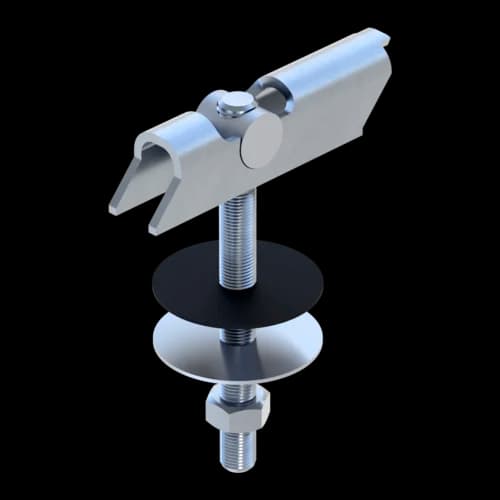

Type TD M10
Toggle Stud KD
Group: 1427
For fixing pipes up to NB50 directly to trapezoidal corrugated sheet ceilings according to VdS/FM standards or as a single-point mounting solution
Larger loads can be fixed via crossbars and toggle studs when VdS/FM regulations do not apply; threaded rod allows height adjustment and is secured against complete unscrewing
Weather-resistant Hypalon washer ensures safe sealing of the mounting bore
Overview of Types
General Information
For fixing pipes up to a nominal diameter of NB50 directly to ceilings made of trapezoidal corrugated sheet according to VdS/FM standards or as single point mounting solution. In cases where VdS or FM regulations are not applicable or in cases of ventilation systems, larger loads may be fixed via crossbars and by an appropriate number of toggle studs. By turning the threaded rod, it is possible to make height adjustments. This threaded rod is secured and cannot be unscrewed completely. The Hypalon washer is weather-resistant and thus a crucial safety factor when sealing the mounting bore.
Certification
Types M8 for Sprinkler Systems according to Vds Standards. VdS: G4780118
Types TD 10 are approved for Sprinkler Systems by FM
Technical specifications
Material base body | steel |
Material insulation body | EPDM |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Permissible carrying capacity of the trapezoidal sheet has to be considered.
Software
This product is available in the following software.

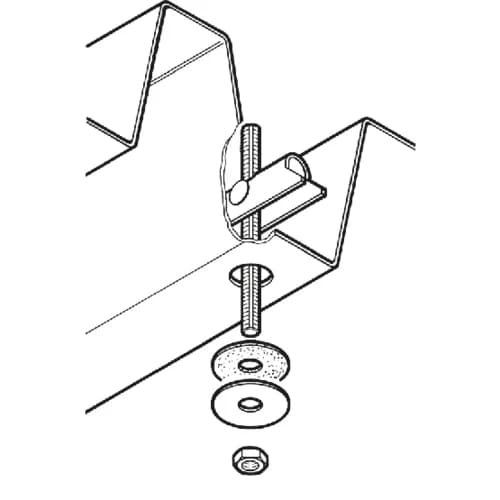

Installation
Documents
- FM Approval - Sikla Toggle Stud TD - G4780118
PDF (0.28MB)
