Support Bracket WK 100/100-40
Group: 1326
Part number 163921
May be used for wall, floor and overhead pipe installation
Versatile mounting options through combination with channel
Technical Data

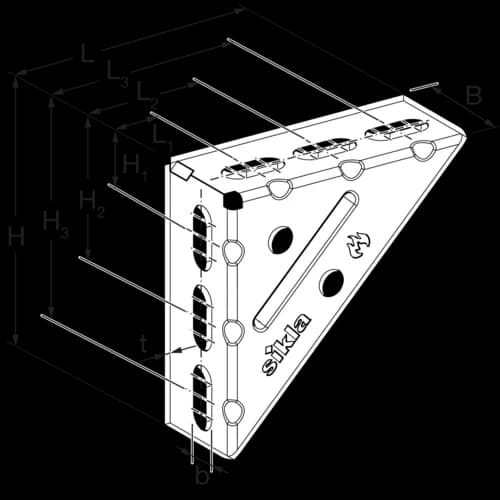

B | 40 mm |
b | 11 mm |
d | 10 mm |
H | 100 mm |
H1 | 23.5 mm |
H2 | 53.5 mm |
H3 | 83.5 mm |
L | 100 mm |
L1 | 23.5 mm |
L2 | 53.5 mm |
L3 | 83.5 mm |
t | 2.5 mm |
For load values, see additional documents.
Technical specifications
Permissible stress σ{perm.} | 160,00 N/mm² |
Primary element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Certification
Documents
Datasheets / Loads
- Angle Bracket WK - Sikla Product Details (100-100, 150-150)
PDF (0.26MB)
