Type 27

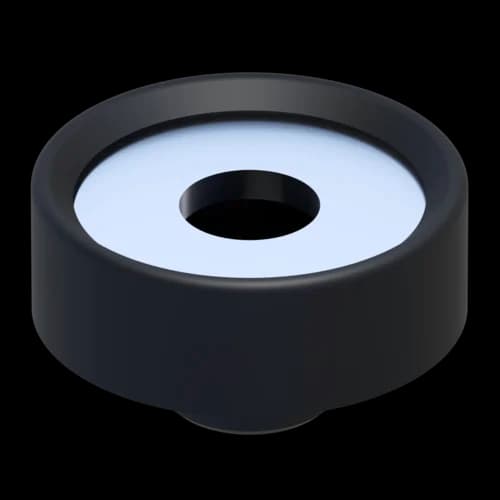

Sound Absorption Unit SDE TYP 27
Group: 2712
Part number 197973
Sound Absorption Unit for use with Sikla Channels MS 27 in ducting systems according to DIN 4109
Geometry ensures reliable sound absorption between channel and suspension
Technical Data
Completely assembled with inserted and retained washer.
Load range
-VX,perm. | 0,30 kN |
VX,perm. | 0,30 kN |
Technical specifications
Max. temperature | 110 °C |
Min. temperature | -50 °C |
Fire Performance | B2 according to DIN 4102 |
Hardness | 50°+/-5° Shore |
Material insulation body | TPE |
Material connecting element | steel |
Corossion class | C2 |
Installation

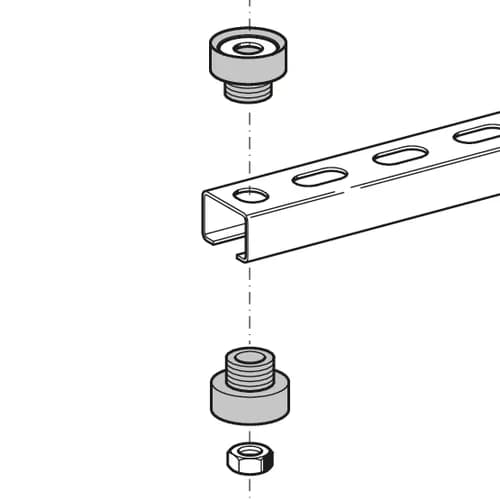

Clamp the Sound Absorption Unit into the round hole of the channel back and into the channel opening. Thread to be pulled through and contered afterwards.
