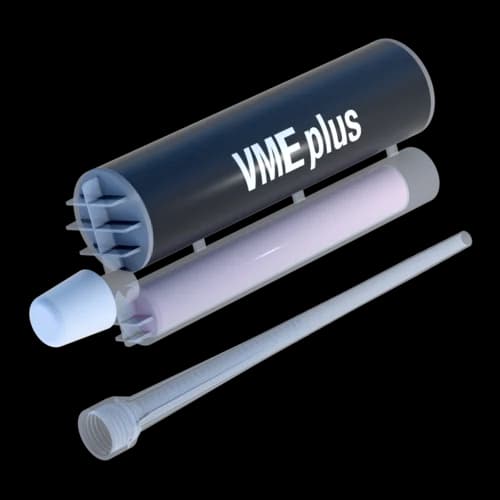

Resin VME PLUS 440 - M
Group: 1409
Part number 407260
Sikla VME plus is a universal resin injection system for anchoring into coated concrete surfaces in LAU systems; suitable for WHG surfaces and cracked or non-cracked concrete
Used with Resin Anchor Rod VMU-A or standard threaded rod with strength certification; slow hardening allows long processing time and ensures secure fastening without shrinkage
Approved for use under seismic action (performance categories C1 and C2)
Technical Data
One cartridge is delivered with one Mixing Nozzle ANT VM-X HP.
Technical specifications
Material base body | Epoxy resin mortar, styrene-free |
Corossion class | C2 |
Delivery date upon request - goods are procured on an order-by-order basis.
Certification
ETA 19/0483
Installation
1. Drill hole and clean with dust removal pump. For several drills, first prepare the drill holes to avoid interruptions while injecting the mortar.
2. Inject the adhesive.
3. Immediately insert (screw in with spiral rotation) the Resin Anchor Rod.
Opened cartridges can be re-used with a new Mixing Nozzle.
Documents
- Sikla Anchor Injection Systems
PDF (8.81MB)
- VME plus 440 M – Safety Data Sheet
PDF (0.38MB)
