124 - 305 mm

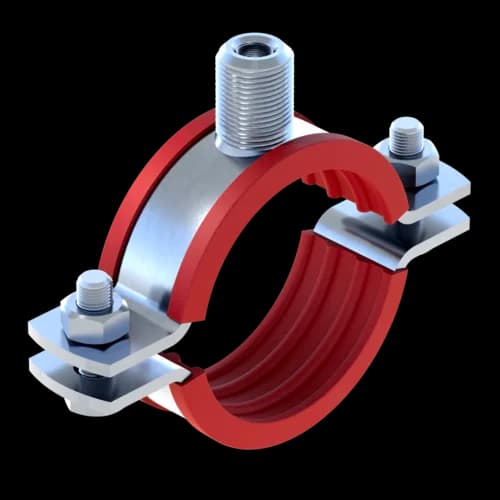

Pipe Clamp STABIL D-2G/3G SIL A4
Group: 1743
Particularly suitable for soundproof pipe installation according to DIN 4109.
Connection options without adapter and with adapter (M12, M16, R 1/2‘, R 3/4’, R 1")
Overview of Types
General Information
For the installation of pipes required for all M&E services in industrial, residential and public buildings. Particularly suitable for soundproof pipe installation according to DIN 4109. Connection options without adapter, see drawing. With adapter: M12, M16, R 1/2', R 3/4', R 1'. Suitable for ceiling, floor and wall mounting.
Certification
This product is has obtained the "RAL Gütezeichen Rohrbefestigung" and is subject to external surveillance according to RAL GZ-655.
Technical specifications
Material base body | Stainless Steel A4 |
Material insulation body | silicone |
Material connecting element | Stainless Steel A4 |
Corossion class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Load range
Type | -VZ,perm. |
STABIL D-2G SIL 18- 20 A4 | 1,50 kN |
STABIL D-2G SIL 21- 24 A4 | 1,50 kN |
STABIL D-2G SIL 25- 29 A4 | 1,50 kN |
STABIL D-2G SIL 31- 35 A4 | 1,50 kN |
STABIL D-2G SIL 38- 42 A4 | 1,50 kN |
STABIL D-2G SIL 46- 50 A4 | 1,50 kN |
STABIL D-2G SIL 51- 55 A4 | 1,50 kN |
STABIL D-2G SIL 58- 63 A4 | 1,50 kN |
STABIL D-2G SIL 74- 78 A4 | 2,00 kN |
STABIL D-3G SIL 86- 90 A4 | 2,00 kN |
STABIL D-3G SIL 100-106 A4 | 2,00 kN |
STABIL D-3G SIL 108-114 A4 | 2,00 kN |
STABIL D-3G SIL 133-140 A4 | 4,00 kN |
STABIL D-3G SIL 158-168 A4 | 4,00 kN |
STABIL D-3G SIL 198-207 A4 | 6,00 kN |
STABIL D-3G SIL 210-219 A4 | 6,00 kN |
The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.
Software
This product is available in the following software.
Installation
Suitable for single-point mounting either directly by means of a threaded rod or by connecting to a Sikla Threaded Tube up to 1' using an adapter.
| Size range [mm] | Tightening torque [Nm] |
|---|---|
| 18 - 63 | 3 |
| 74 - 114 | 5 |
| 133 - 168 | 10 |
| 198 - 219 | 20 |
