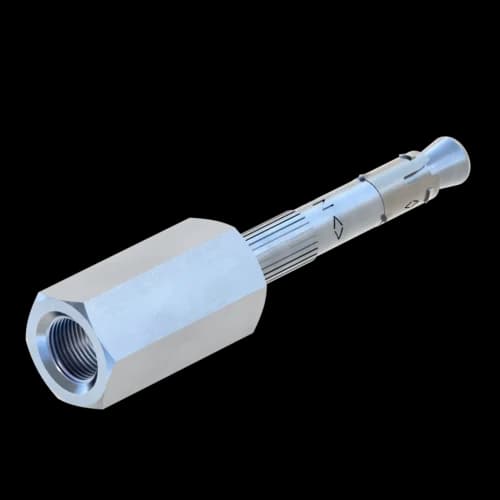

Nail Anchor AN N 6X25 M8/M10
Group: 1406
Part number 112152
Suitable for quick and secure mounting of components to concrete ceilings or walls
Internal dual thread M8/M10 allows easy connection of components directly to the Nail Anchor
Technical Data
FRP 30 | 0,6 kN |
FRP 60 | 0,6 kN |
FRP 90 | 0,6 kN |
FRP 120 | 0,5 kN |
Technical specifications
Material base body | steel |
Class | 5.8 |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Sikla approval ETA-13/0048
For the multiple use for non-structural applications in concrete (min. C12/15 and max. C50/60). Fire protection testing, VdS-conform

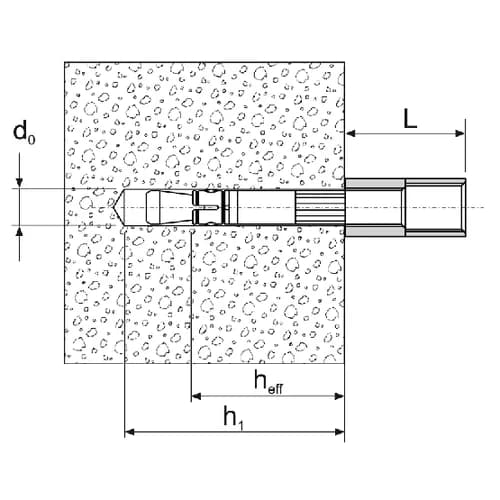

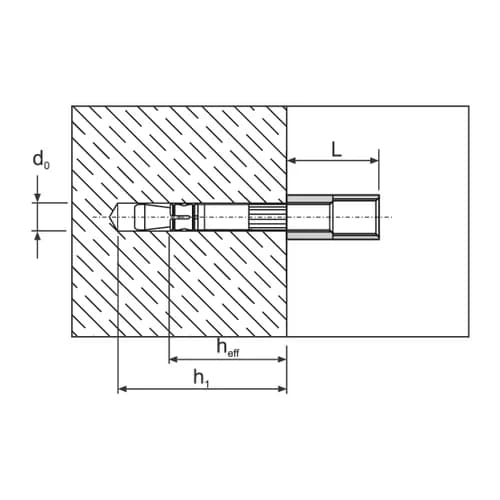

Installation
Fast and simple setting of the Nail Anchor AN N M8/M10:
1. Drilling
2. Cleaning of bore hole
3. Hammer in - ready!
Documents
Approvals / Anchor ETA
- Nail Anchor AN - ETA 13/0048
PDF (1.47MB)
Approvals / VdS
- VdS Approval - Sikla Anchors – Types AN, BZ, TSM (DN 0–100)
PDF (0.23MB)
Brochures
- Sikla Metal Anchor Systems
PDF (4.09MB)
Declaration / Decl. of Performance
- DoP - Nail Anchor AN N
PDF (0.69MB)
