F 80 -Stabil 1"
F 80 - Stabil 1/2"
F 80 - Stabil 3/4"

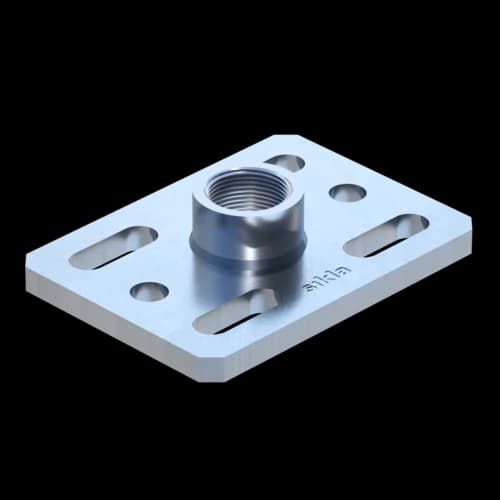

Mounting Plate GPL F 80
Group: 1227
Adapter plate for installing pipe clamps to Beam Section TP F80 or Channel System using threaded tube 1/2'
Overview of Types
General Information
Adapter plate for installing pipe clamps to Beam Section TP F80 or Channel System by means of threaded tube 1/2'.
Certification
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VX,perm. | VX,perm. | -VY,perm. | VY,perm. | -VZ,perm. |
GPL F 80 STABIL 1/2'' | 13,00 kN | 13,00 kN | 13,00 kN | 13,00 kN | 18,00 kN |
GPL F 80 STABIL 3/4'' | 13,00 kN | 13,00 kN | 13,00 kN | 13,00 kN | 18,00 kN |
GPL F 80 STABIL 1'' | 13,00 kN | 13,00 kN | 13,00 kN | 13,00 kN | 18,00 kN |
Type | Permissible bending moment Mb,perm. |
GPL F 80 STABIL 1/2'' | 53 Nm |
GPL F 80 STABIL 3/4'' | 138 Nm |
GPL F 80 STABIL 1'' | 277 Nm |
The threaded pipe used is decisive for the permissible bending moment. Other influences from the fastening (anchor) must be taken into account.
Software
This product is available in the following software.
Installation
Type ST: Requires 4 x Self Forming Screw FLS per Mounting Plate GPL. Connection to the channel system with CC 41 threaded plate and hexagon screws. The base plate is also suitable for concrete connections thanks to the two holes.
