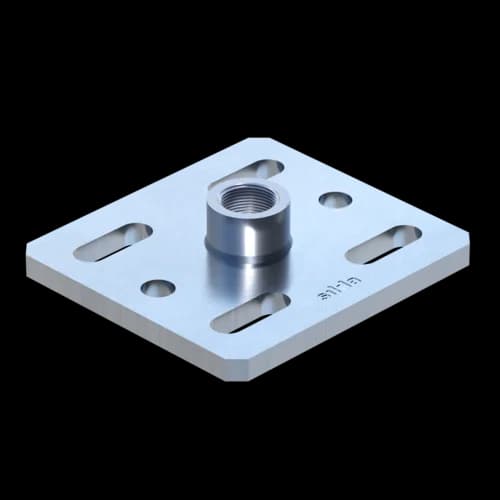

Mounting Plate GPL F100 HCP

Group: A838

Interface component for connecting threaded bar M10 to M16 and threaded tube 1/2' to siFramo TP F100 beam sections

ST versions are solid and intended only for pipe clamp fastening using threaded pipes

Select a Type

Overview of Types
General Information
Installation

Overview of Types

General Information

Interface component to connect threaded bar M10 to M16 and threaded tube 1/2' siFramo TP F100 beam sections. The ST versions are solid and are only intended for pipe clamp fastening using threaded pipes.

Certification

Technical specifications

Material base body	steel
Surface	HCP
Corossion class	C4

Load range

Type	-V_X,perm.	V_X,perm.	-V_Y,perm.	V_Y,perm.	-V_Z,perm.
GPL-ST F100 1/2'' HCP	13,00 kN	13,00 kN	13,00 kN	13,00 kN	18,00 kN
GPL-ST F100 1'' HCP	13,00 kN	13,00 kN	13,00 kN	13,00 kN	18,00 kN
GPL F100 M10 HCP	13,00 kN	13,00 kN	13,00 kN	13,00 kN	8,00 kN
GPL F100 M12 HCP	13,00 kN	13,00 kN	13,00 kN	13,00 kN	8,00 kN
GPL F100 M16 HCP	13,00 kN	13,00 kN	13,00 kN	13,00 kN	8,00 kN
GPL F100 1/2'' HCP	13,00 kN	13,00 kN	13,00 kN	13,00 kN	8,00 kN

Type	Permissible bending moment M_b,perm.
GPL-ST F100 1/2'' HCP	53 Nm
GPL-ST F100 1'' HCP	277 Nm
GPL F100 M10 HCP	15 Nm
GPL F100 M12 HCP	26 Nm
GPL F100 M16 HCP	62 Nm
GPL F100 1/2'' HCP	53 Nm

The threaded pipe used is decisive for the permissible bending moment. Other influences from the fastening (anchor) must be taken into account.

Software

This product is available in the following software.

Installation

Type Normal: Requires 2 x Self Forming Screw FLS per Mounting Plate GPL.

Type ST: Requires 4 x Self Forming Screw FLS per Mounting Plate GPL. Connection to the channel system with CC 41 threaded plate and hexagon screws. The base plate is also suitable for concrete connections thanks to the two holes.
