Type 350
Type 41 D - 350

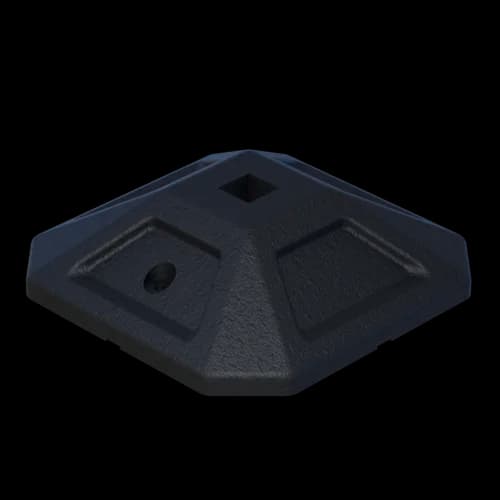

Insulated Foot Plate SHB SQF 41
Group: 1377
Complete solution made of synthetic rubber for flat and foil roofs as well as building services in the basement
Permeable rubber provides secure support and even load distribution
Overview of Types
General Information
Comprehensive solution out of synthetic rubber for flat roofs and central energy supply centers with coated floor. In combination with the Sikla Assembly System any structures can quickly and simply be realised. The water permeable rubber allows a secure and reliable support with constant load distribution. Particularly suitable for the fixation of aggregates, pipings, ventilation ducts and walkways. Depending on the Insulated Foot either a Channel MS 41/41 or a Channel MS 41/41 D can be plugged in.
Technical specifications
Material base body | SBR |
Load range
Type | VZ,perm. |
SHB SQF 41 - 350 | 9,00 kN |
SHB SQF 41 - 500 | 16,00 kN |
SHB SQF 41 D - 350 | 9,00 kN |
SHB SQF 41 D - 500 | 16,00 kN |
Software
This product is available in the following software.
Installation

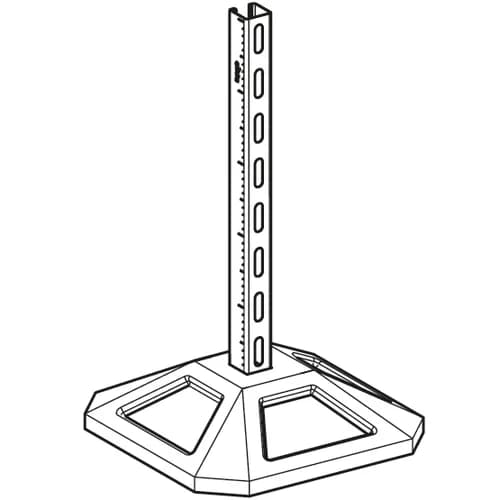

Insert the Channel MS 41/41 or 41/41 D into the Insulated Foot's slot.
Insertion depth:
Type SQF 350: 60 mm
Type SQF 500: 90 mm
Tests to determine the coefficient of friction shall be carried out by the customer. Depending on the used roofing film the customer has to decide if an additional separation layer (e.g. fleece) is necessary. Furthermore the statics have to be verified by a qualified engineer.
