Injection System VMZ
Group: 1409
Resin for Resin Anchor Rod VMZ-A with excellent load capacity in cracked and uncracked concrete
Hardens to form a strong bond with concrete and an expansion sleeve around the conical rod; inner bond is released by applying torque after hardening
Approved for seismic action under performance categories C1 and C2 (M10–M16)
Overview of Types
General Information
Resin for Resin Anchor Rod VMZ-A. Excellent load capacity in broken and unbroken concrete. The resin mixture hardens resulting in strong bond with the concrete and a perfectly formed expansion sleeve around the conical rod. The inner bond between the conical rod and the resin mixture is broken by applying a torque moment after the hardening process. The VMZ is approved for use under seismic action according to the performance category C1 and C2 (M10 - M16).
Certification
Detailed technical information could be seen in the data sheets of Resin Anchor Rod VMZ, as well as in the Approval ETA-10/0260.
Sikla Approval ETA-10/0260
Technical specifications
Material base body | Vinyl ester basis, styrene-free |
Corossion class | C2 |
Installation

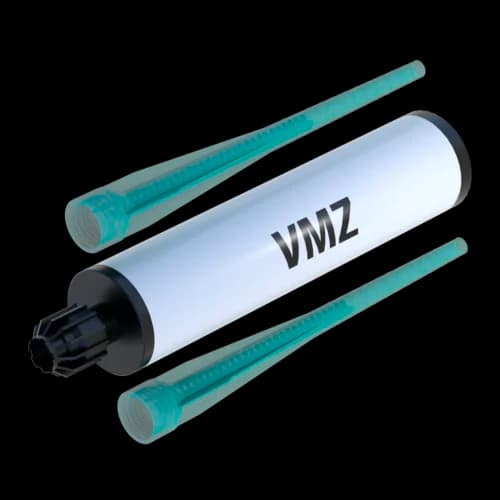

Resin and hardener are separated in the cartridge. A dispensing tool is used to push both components through a mixing nozzle. In the nozzle the resin and hardener are mixed and filled into the the cleaned drill hole.
After a longer break in work, exchange of the mixing nozzle allows further use of the resin.
Reach of resin:
| Type | Number of drill holes per cartridge |
|---|---|
| VMZ-A M8 ... | 58 |
| VMZ-A M10 ... | 39 |
| VMZ-A M12 ... | 27 |
| VMZ-A M16 ... | 16 |
