Injection System VMH 280 - M
Group: 1409
Part number 805227
Sikla VMH is a universal chemical fastening for uncoated FD/FDE concrete surfaces in LAU systems; suitable for cracked and non-cracked concrete for highest loads
Used with Resin Anchor Rod VMU-A or threaded rod with strength certification; dispenser gun injects components into drill hole or perforated sleeve for secure anchoring
Enables fastenings exposed to high temperatures (+160°C) and is approved for seismic action (performance categories C1 and C2)
Technical Data

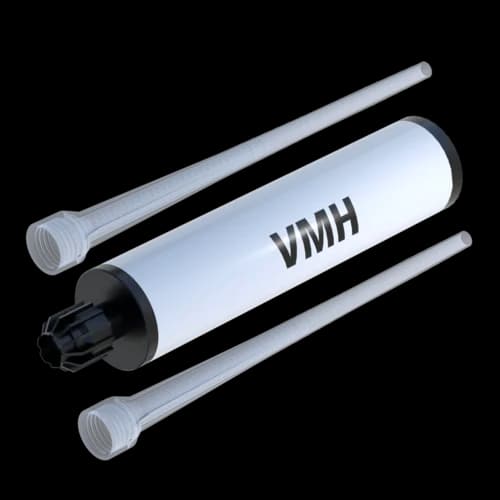

One cartridge is delivered with two Mixing Nozzle ANT VM-X HP.
Technical specifications
Material base body | Hybrid injection mortar, styrene-free |
Corossion class | C2 |
Certification
ETA 17/0716
Installation
1. Drill hole and clean with dust removal pump. For several drills, first prepare the drill holes to avoid interruptions while injecting the mortar.
2. Inject the adhesive.
3. Immediately insert (screw in with spiral rotation) the Resin Anchor Rod.
Opened cartridges can be re-used with a new Mixing Nozzle.
Documents
- Sikla Anchor Injection Systems
PDF (8.81MB)
