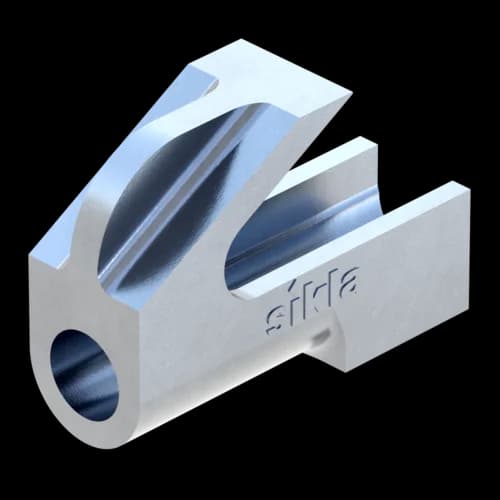

Hook Sleeve SP1
Group: 1331
Part number 106777
Used in combination with profiled beams as a holder for single-point mountings or for mounting crossbars
Technical Data
Technical specifications
Material base body | cast steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Installation
Equipped with a (o/ 13 mm) boring for use with M8 to M12 grub screws. When using an M8 grub screw, we recommend the use of a flange nut. First tighten sturdy, after that tighten up with max 1 1/2 turns.
Documents
Datasheets / Loads
- Loads – Hook Sleeve SP
PDF (0.10MB)
