Type FS Z

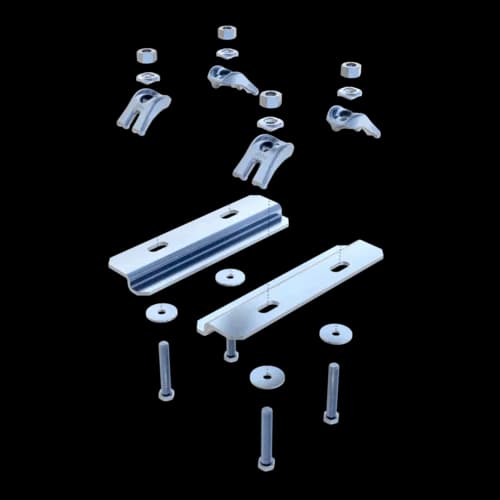

Guiding Set FS Z HCP
Group: A705
For suspension of a guided pipe shoe from a siMotec beam section 100 or 120 or another steel girder with flange width of 80 to 120 mm
Overview of Types
General Information
For suspension of a Guided Pipe Shoe from a siMotec Beam Section 100 resp. 120 or another steel girder with a flange width of 80 up to 120 mm.
Certification
Technical specifications
Material base body | cast steel |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Software
This product is available in the following software.
Installation

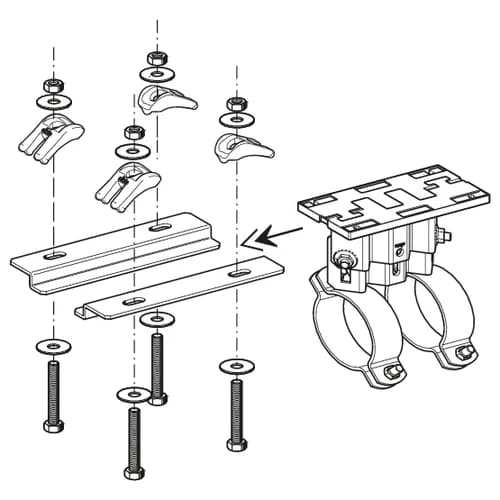

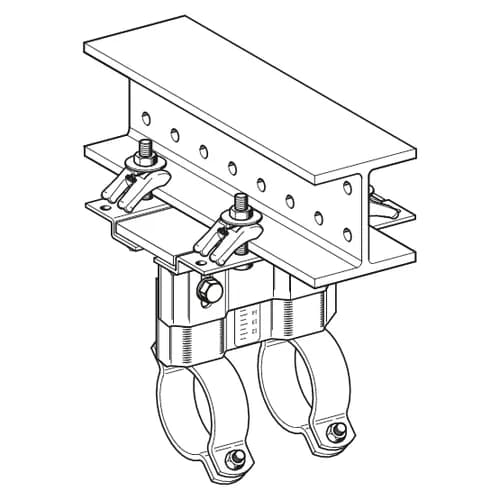

The guide rails are to be fixed with the attached connection kit below the beam with 2mm clearance to the support at the side. Torque for the M12 bolts of the Assembly Set = 85 Nm.
