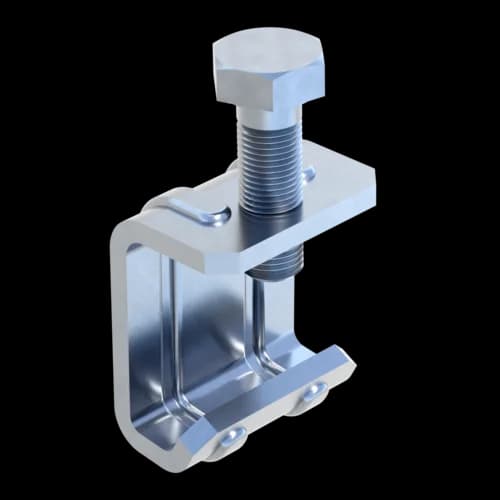

Ducting Bracket LCO 20/30/40
Group: 1604
Part number 117333

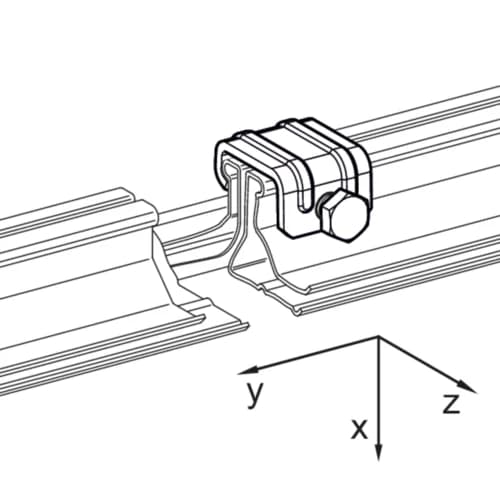

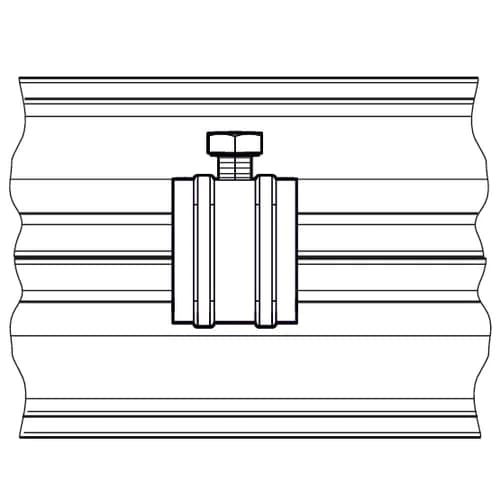

For connecting formed duct parts; tightening the bracket presses the flanges together
Suitable for ducts with flange widths of 20 mm, 30 mm and 40 mm
Technical Data
Pre-assembled with M8 x 20 hexagon bolt.
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Installation
The distance between two Ducting Brackets should not exceed 200 mm. Tighten the bolt with a torque of approx. 5 Nm.
