Type W
Angle Connector CN CC41 - 90° W STABIL
Group: 1326
Part number 191684
Complete connecting element for frame constructions made from Channel, type W for connection to wall, floor or ceiling.
Quick connection technology for 90° joints, locks automatically when pressure is applied to the screw head

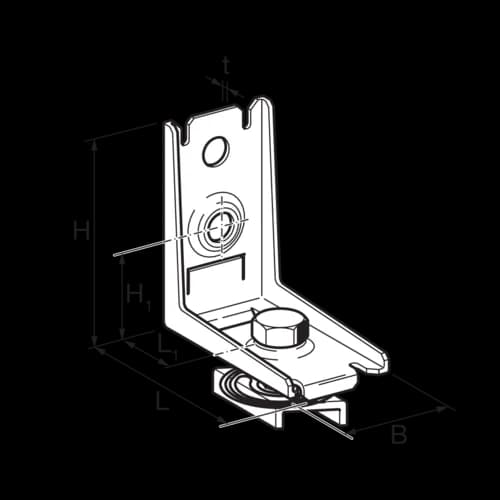

Technical Data
B | 41 mm |
H | 75 mm |
H1 | 33 mm |
L | 73 mm |
L1 | 40 mm |
t | 2.5 mm |
Load range
VX,perm. | 2,30 kN |
VZ,perm. | 3,50 kN |
Technical specifications
Primary element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Certification
This product has been awarded the RAL quality mark "Pipe Supports" and is subject to continuous external monitoring according to RAL GZ-655.
Installation
Tightening torque: 40 Nm
