Angle Connector CN CC41 - 90°
Group: 1326
Part number 180236
Pre-assembled connecting element especially for frame structures made of channels
High-speed assembly system for 90° connection of Channels MS 41

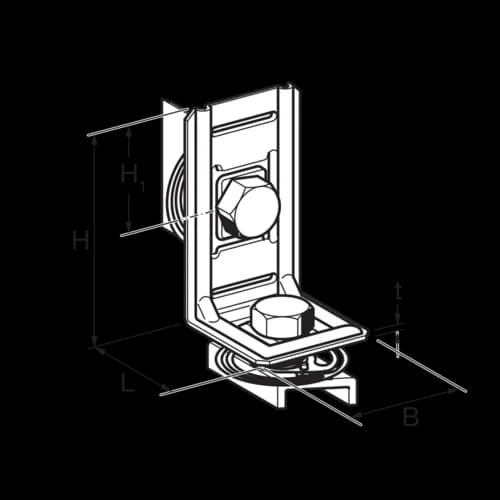

Technical Data
B | 41 mm |
H | 70 mm |
H1 | 34.6 mm |
L | 41 mm |
t | 1.5 mm |
Load range
-VX,perm. | 4,00 kN |
VX,perm. | 4,00 kN |
-VZ,perm. | 4,00 kN |
VZ,perm. | 4,00 kN |
Working load as axial load per crossbar with 2 CC Angle Connectors 90°.
Technical specifications
Primary element material | steel |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Certification
Installation
Tightening torque: 40 Nm
