From DN 100

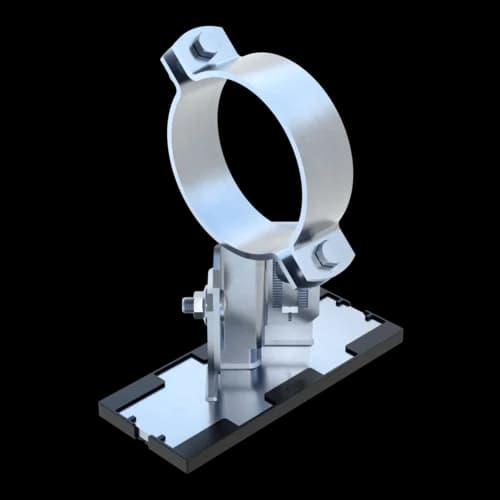

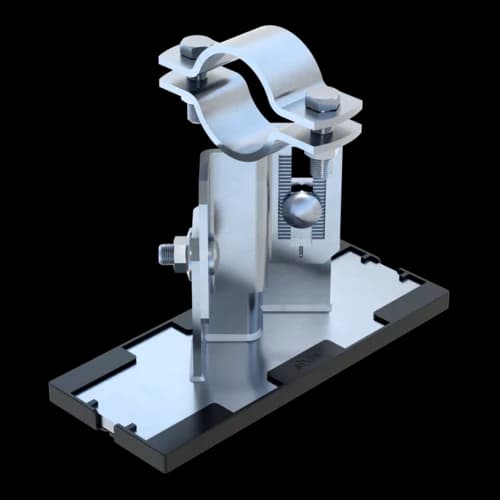

Pipe Shoe LA-HV 150 HCP

Group: A730

Height-adjustable Pipe Shoe, heightadjustment in steps of 2.5mm, delivery height of 150 mm - suitable for sliding pipe supports

Suitable for steel beams, with a minimum flange width of 80 mm

Flexible in combination with other Sikla components to create guide or fixed points.

Select a Type

Overview of Types
General Information
Installation
Documents

Overview of Types

General Information

Height-adjustable, single-clamp pipe shoe with a delivery height of 150 mm. Height adjustment in steps of 2.5 mm. Particularly suitable for sliding pipe supports on suitable surfaces. When resting on steel beams, a minimum flange width of 80 mm is recommended. Guide or fixed points can also be created in combination with other Sikla components.

Certification

Technical specifications

Max. temperature	300 °C
Min. temperature	-20 °C
max. temperature sliding element	130 °C
min. temperature sliding element	-20 °C

Friction coefficient µ static Pipe shoe foot (without sliding plate) / siFramo and siMotec	0,3
Friction coefficient µ static Pipe shoe foot (with sliding plate) / siFramo and siMotec	0,2

Material base body	steel
Material sliding element	PA 6.0
Surface	HCP
Corossion class	C4

Also available with DUALSHIELD for high corrosion protection within C5H environments. Minimum quantities must be observed for pipe shoes outside the DN range. In addition, delivery times apply for these items on request.

Software

This product is available in the following software.

Installation

Type	Height H as delivered [mm]	Height H Range [mm]
HV 150	150	116 - 168,5

Tightening torque screw connections

Clamping bolts	Tightening torque [Nm]	Height adjustment	Tightening torque [Nm]
DN 15 - 40	40	Bolts in the bar	80
DN 50 - 150	50	Bolts in the bar	80

Documents

Datasheets

Pipe Shoes LA-HV Type Overview
PDF (0.10MB)
