STA F 80/30-Q
End Support STA-Q F 80/30 HCP
Group: A422
Part number 117294
Native connection of the F 80/30 support profile to the F 80 support profile with Self Forming Screw FLS
In combination with Cantilever Bracket and End Support for the consturction of crossbars

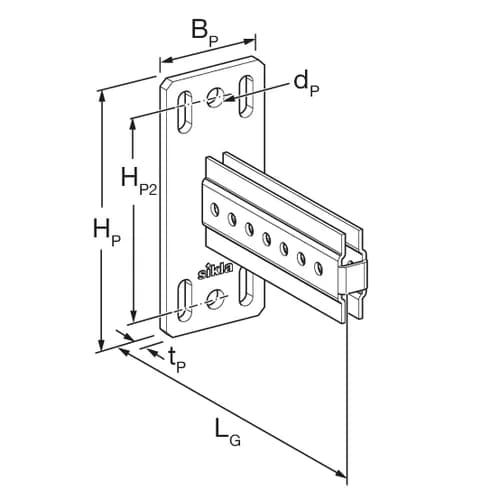

Technical Data
BP | 80 mm |
dP | 14 mm |
HP | 190 mm |
HP2 | 150 mm |
LG | 178 mm |
tP | 8 mm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
CE mark (Declaration of performance see downloads)
ETA-24/0471
Installation
Depending on the situation, different options are recommended:

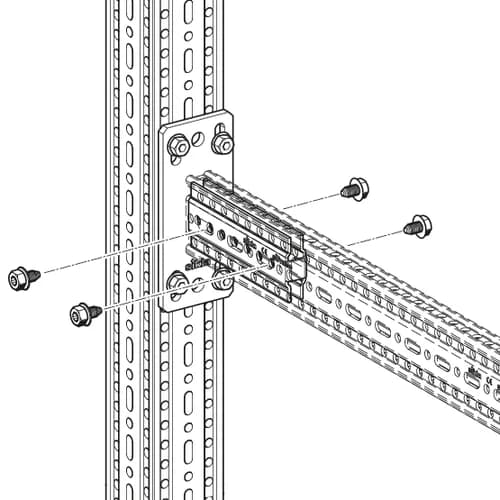

a) With 2 x 4 Self Forming Screws FLS when used to connect 2 Beam Sections.
b) With 4 Self Forming Screws FLS applied to the insert and two suitable M12 wall anchors/fixings when connected to the building structure.
Documents
- siFramo - ETA-24/0471
PDF (2.15MB)
