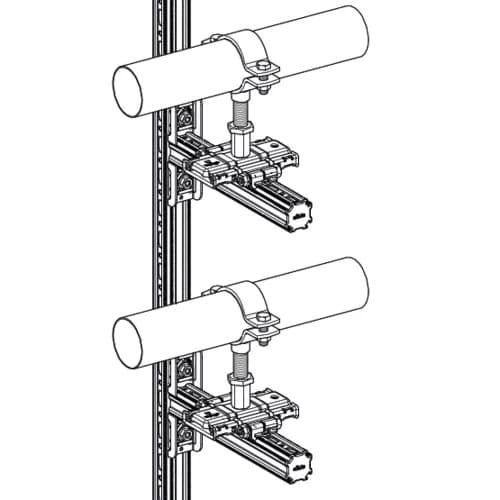

Cantilever Bracket AK CC 46-P - 400 HCP

When used in conjunction with sliding elements, a cross brace (in combination with Tie Rod STR and Blockset PBS 46 M10 x 50) is recommended to resist forces in the axial direction of the pipe. For cantilever lengths >= 500 mm, a vertical brace or support (e.g. with tie rod STR and blockset PBS 46 M10 x 50) is recommended.

Tightening torque: 20 Nm

Configuration: Base plate welded to Profile PRO 46-P

Required tool: T50 Bit or 17 mm (AF) Socket Bit
