Pipe Shoes

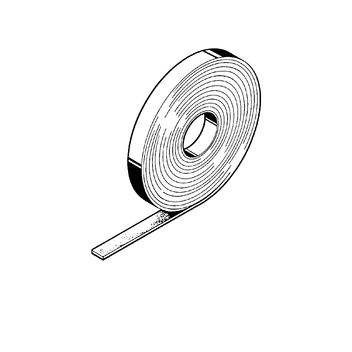

Glass Fibre Tape GSK

Application

Insulation insert for pipe clamps to prevent from contact corrosion and to ensure thermic separation.

Scope of delivery

In rolls, self-adhesive on one side, coated with PE peel-off foil on the adhesive side. Adhesive: epoxy resin.

Technical Data

Temperature range:
Up to +1100°C permanent exposure
Thermal conductivity:
λ = 0,07 W/(mK) bei 200°C
λ = 0,10 W/(mK) bei 400°C
λ = 0,15 W/(mK) bei 600°C
λ = 0,22 W/(mK) bei 800°C
Specific gravity:
180 - 240 kg/m3
Chemical behaviour:
Neutral
TypeWidth
[mm]
Thickness
[mm]
Roll
[m]
Qty.
[m]
Part
number
40 x 2402.010 70 193051
50 x 2502.010 60 193068
