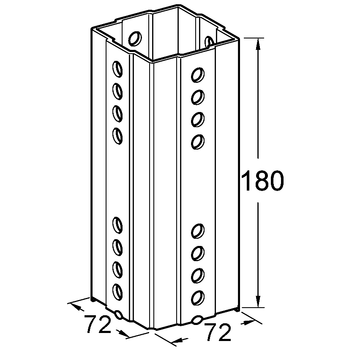

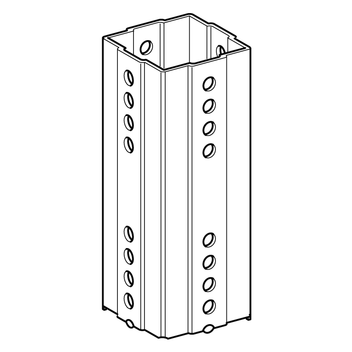

Welding Adapter ASA F 80 Square
Welding plate with square insert to receive siFramo section. May be implemented into the structural steel design in anticipation of siFramo-frames or used in situ as a connection element when clamping is not an option but hot works are permitted.

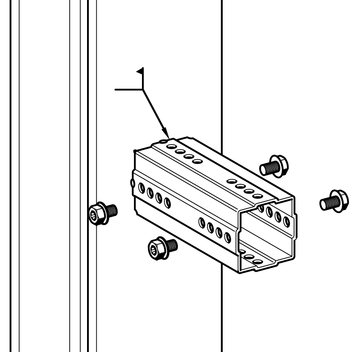

The welding plate of the ASA can be welded directly without previous treatment due to a corrosion-resistant weld-thru coating which is compatible with both the HDG surface of the siFramo section and the health and safety requirements of the welding process. Once the ASA adapter has been connected, the coating may also receive paint without previous treatment. The siFramo section must be connected to the Welding Adapter ASA with 4 x Self Forming Screw FLS.
| Cantilever:|| Max. 1.0 kNm|
| Crossbar:|| See siFramo Installation Guidelines|
| Material:||Steel, HCP|
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.com/service/downloads)
