siFramo 80

Mounting Plate GPL F 80 Stabil HCP

Application

Adapter plate for installing pipe clamps to Beam Section TP F80 or Channel System by means of threaded tube 1/2" or thread Connection.

Installation

Direct connection of plate to Beam Section TP F80 by means of 4 Self Forming Screws FLS F 80. Connection to the Channel System by means of Speed Nut CC41 and Hexagon Bolts. The two drilled holes in the Adapter Plate mean that the Plate may also be installed to concrete.

Technical Data

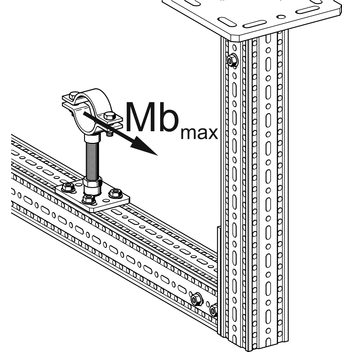

Permissible bending moment of the Threaded Tube 1/2" Mbmax, should not be exceeded. Any lateral loads on the pipe clamp also need to be considered.

Material:
Steel, HCP
TypeDimension
L x W x Th
[mm]
Elongated hole
d x a
[mm]
ø
[mm]
W
[kg]
Quantity
[pack]
Part
number
GPL F 80 ST-1/2"110 x 80 x 811 x 31110.5025 112719
