siFramo 80
End Support WBD F 80
Application

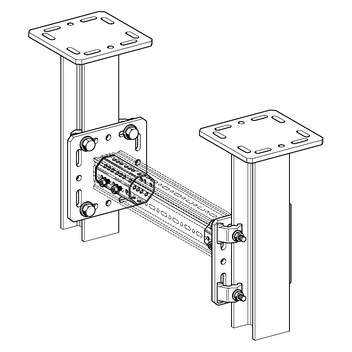

Plug-in component designed to create a square endplate at the open end of a Beam Section TP F80 or a Beam Bracket/Cantilever bracket AK F80. Variation âTâ with octagonal insert allows full utilisation of beam section within the space required by the End Support WBD itself.
Installation

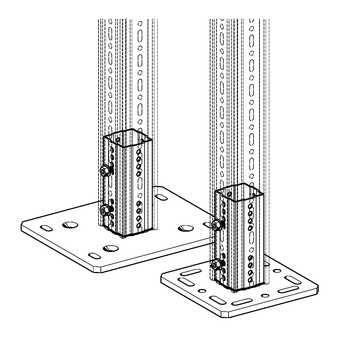

Depending on the situation, different options are recommended:
| a) | Directly to building structure: 4 x suitable wall anchors and 4 Self Forming Screws FLS applied to the square/octagonal insert |

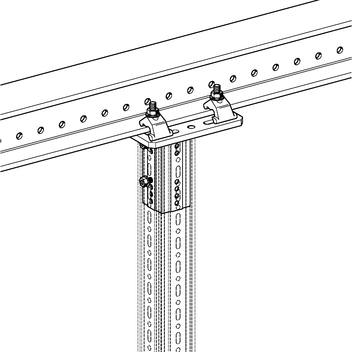

| b) | To traditional steel beams between 80 â 300 mm flange dimensions: 1x Assembly Set 5P M12 S, M16 S and 4 Self Forming Screws FLS applied to the square/octagonal insert |
| c) | To traditional steel beams > 120 flange dimension: with on-demand Adaptor Plate (tbc) |
| c) | To Sikla Simotec Steel Beams 100/120: with Bracket Plates FV 100/120 when positive mechanical connection required |
The Beam Section TP F 80 connected to the End Support WBD F 80 has to be screwed with 4 Self Forming Screws FLS F. On each of the opposite sides 2 Self Forming Screws FLS F are necessary.
Technical Data

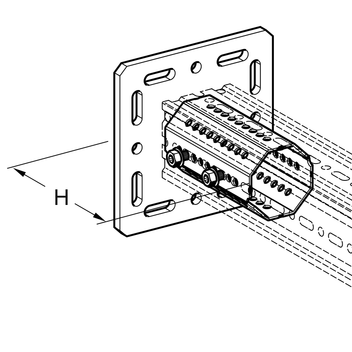

| Type | For flange width [mm] | Dimensions of base plate [mm] | Slots in base plate for | H [mm] |
|---|---|---|---|---|
| WBD F 80-80/120 | 80 - 120 | 220 x 220 x 12 | M12 | 192 |
| WBD F 80-121/160 | 121 - 160 | 320 x 260 x 12 | M12 | 192 |
| WBD F 80-161/200 | 161 - 200 | 320 x 310 x 12 | M16 | 192 |
| WBD F 80-201/300 | 201 - 300 | 420 x 220 x 12 | M16 | 192 |
| WBD F 80-T | 80 - 120 | 220 x 220 x 12 | M12 | 152 |
| Configuration: | Base plate welded to square F 80 resp. octagonal element F 80 (nur WBD F 80-T) |
| Material: | |
| Plate: | Steel, HCP |
| Square F 80: | Steel, HCP |
| Octagonal element F 80: | Steel, HCP |
Approvals / Compliance
CE mark (Declaration of performance see www.sikla.com/service/downloads)
MPA tested
End Support WBD F DoP A421-A821 PDF | 37.1 KB
