Application

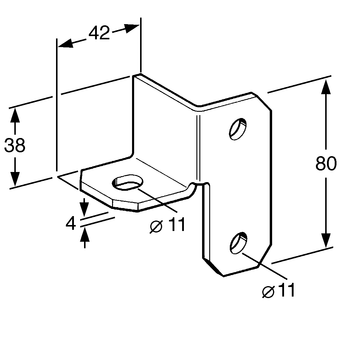

Bracket for assembling crossbars made of Channels MS 41: 41/21/1.5 ....41/62/3.0 (suitable for double channels also)

  • Particularly useful in cases in which the openings of the channels are not facing the crossbars.
  • The same bracket can be used on both sides of the crossbar; thus easy stockkeeping and no danger of mix-up.

Scope of delivery

Supplied without bolts and nuts.

Installation

To be used in pairs.
For easy installation, pre-assemble 3 M10x20 Hexagon Bolts with CC-Nut M10 (use washer for oval hole). This way, the Corner Bracket may be tightened in the channels immediately after insertion.

Note: The cutting length of the crossbar should be clearance minus 10 mm (see drawing)

Technical Data

Max. perm. working load:
2.5 kN centre load per crossbar fixed with 2 EW Corner Brackets 41
Material:
Steel, electro-galvanised
TypeW
[kg]
Quantity
[pack]
Part
number
EW 410.1725 160803
