Application

Pipe clamp for use in plant construction, based on the DIN 3567 Type C standard for suspension elements. The cross-sections are in line with the requirements of the VdS.

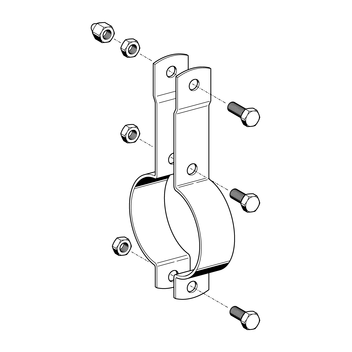

Scope of delivery

With bolts and nuts pre-mounted: M10, class 8.8.

Technical Data

Material:
Steel, electro-galvanised

DN
Working load (tension)
40 - 200 8,5 kN

The max. adm. load capacity is determined by the application of statistical methods resulting from the breaking loads, under observance of a max. adm. deformation of 1.5 mm resp. 2% of the max. stretchable pipe dia.

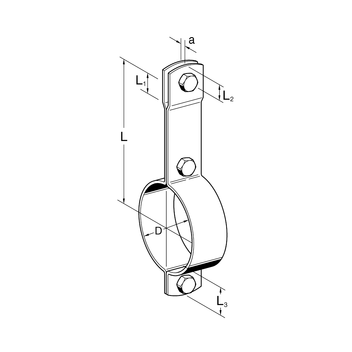

DN
D
[mm]
Material
[mm]
L
[mm]
a
[mm]
L1
[mm]
L2
[mm]
L3
[mm]
40 50 40 x 4 95 7 22 17 25
50 62 40 x 4 111 7 22 17 25
65 78 40 x 4 134 7 22 17 25
80 91 40 x 4 156 7 22 17 30
100 116 40 x 4 188 7 22 17 30
125 148 40 x 4 204 7 22 17 30
150 173 40 x 4 217 7 22 17 30
200 225 40 x 4 243 7 22 17 30
NBOD of pipe
[mm]
W
[kg]
Quantity
[pack]
Part
number
40 48.30.4425 152404
50 60.30.5125 152413
65 76.10.5625 152422
80 88.90.6525 152431
100114.30.7810 152440
125139.71.0810 152459
150168.31.1810 152468
200219.11.3910 152477
