INNOVATIVE PIPE
SUPPORT SOLUTIONS

Application

For the installation of pipes required for all M&E services in industrial, residential and public buildings.

Scope of delivery

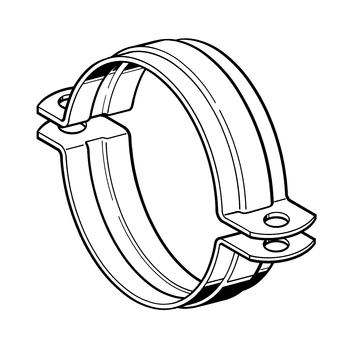

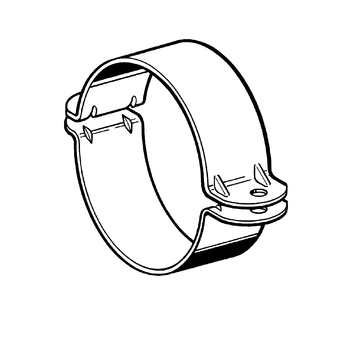

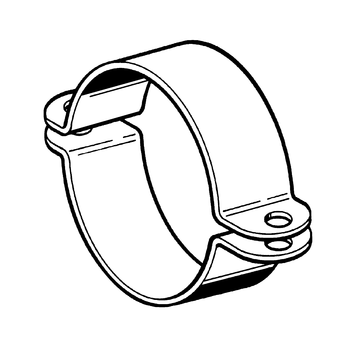

Two parts pipe clamp without clamping bolts and nuts. For suitable clamping bolts, see chapter "Fixings and Fastenings".

Technical Data

Size [mm]
Working load (tension)
15 - 72
4.0 kN
76 - 129
5.0 kN
133 - 173
8.0 kN
176 - 303
12.5 kN
316 - 521
15.0 kN

Material:
Steel, electro-galvanised

Approvals / Compliance

FM-Approval

Size range
[mm]
NBMaterial
W x th
[mm]
Recommended
clamping bolts

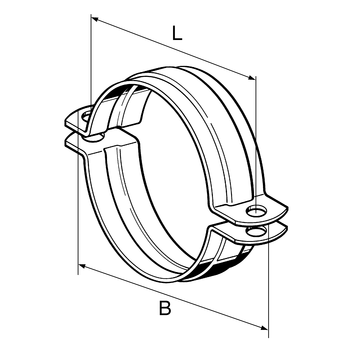

B
[mm]
L
[mm]
W
[kg]
Quantity
[pack]
Part
number
15 - 193/8"25 x 3.0M8 x 2564 420.0750 107732
20 - 241/2"25 x 3.0M8 x 25 69 470.0850 107741
25 - 303/4"25 x 3.0M8 x 2575 530.0850 107750
31 - 351"30 x 3.0M8 x 2580 580.1150 106786
48 - 531 1/2"30 x 3.0M8 x 25 98 760.1450 106801
54 - 5930 x 3.0M8 x 25104 820.1650 106810
60 - 652"30 x 3.0M8 x 25110 880.1850 106829
67 - 7230 x 3.0M8 x 25117 950.1950 106838
76 - 812 1/2"30 x 3.0M10 x 301411140.2225 106847
82 - 8730 x 3.0M10 x 301471200.2325 106856
88 - 933"30 x 3.0M10 x 301531260.2525 106865
102 - 10830 x 3.0M10 x 301681410.2825 106874
124 - 12930 x 3.0M10 x 301891620.3225 106892
140 - 1485"40 x 4.0M12 x 402181860.6610 115876
149 - 15540 x 4.0M12 x 402251930.7210 106917
176 - 18440 x 4.0M16 x 452712390.8310 106944
188 - 19440 x 4.0M16 x 452812490.8410 106953
199 - 20540 x 4.0M16 x 452922600.8910 106962
207 - 21640 x 4.0M16 x 453032710.3610 150891
278 - 28440 x 4.0M16 x 453703381.2010 106999
297 - 30340 x 4.0M16 x 453893571.2710 107006
316 - 32432450 x 5.0M16 x 604403902.10 1 103701
348 - 35635650 x 5.0M16 x 604714212.53 1 103729
360 - 36836850 x 5.0M16 x 604824322.54 1 103747
399 - 40740750 x 5.0M16 x 605204702.88 1 103765
411 - 41941970 x 6.0M16 x 605324824.84 1 103783
500 - 50850870 x 6.0M16 x 606195695.78 1 103808
513 - 52152170 x 6.0M16 x 606315815.67 1 103826
