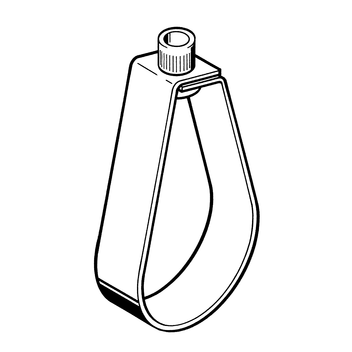

Pipe Clamps and Accessories

Pipe Loop RSL Praktica S

Application

For pipeline installations of fixed fire extinguishing systems, mainly used for Sprinkler systems.

Scope of delivery

Cup nut included in loose form.

Installation

Advice for VdS-installation: when assembling size DN 10", the cup nut M16 is replaced by two washers and two hexagon nuts M20!

Technical Data

Material:
Steel, galvanised as per DIN EN 10346

Approvals / Compliance

FM < 10" and VdS (No. G4780120) approved

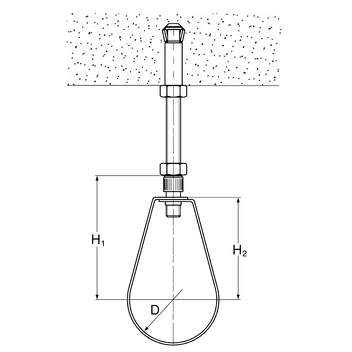

TypeNBConnectionD
[mm]
H2
[mm]
H1
[mm]
W
[kg]
Quantity
[pack]
Part
number
26.93/4"M8 (VdS)2755660.07100 141109
33.71"M8 (VdS)3459700.08100 141118
42.41 1/4"M8 (VdS)4363780.08 50 141127
48.31 1/2"M8 (VdS)4966810.09 50 141136
60.32"M8 (VdS)6172870.10 50 141145
33.71"M10 (FM)3459700.07100 140861
42.41 1/4"M10 (FM)4363780.08 50 140870
48.31 1/2"M10 (FM)4966810.08 50 140889
60.32"M10 (FM)6172870.08 50 140898

76.1 2 1/2"M10 77 931080.2025 140904
88.9 3"M10 901001150.2225 140913
114 4"M101151211460.2725 140834
139 5"M121421501620.5225 140843
168 6"M121701751870.6025 140852
219 8"M162212252400.7810 140968
27410"M162762853001.7410 140977
