Application

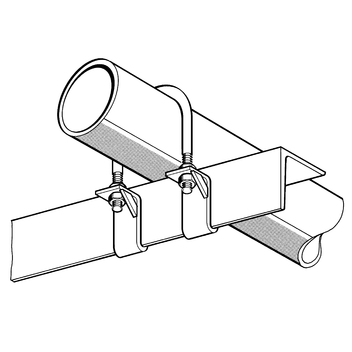

In combination with U bolts up to size M12, the Hook Bracket may be used for directly installing horizontal or vertical pipe strands to U or angle beams.

Technical Data

Type
Working load
Hook Bracket 6.0 kN
with M8 3.0 kN
with M10 5.0 kN
with M12 6.0 kN

Material:
Steel, electro-galvanised

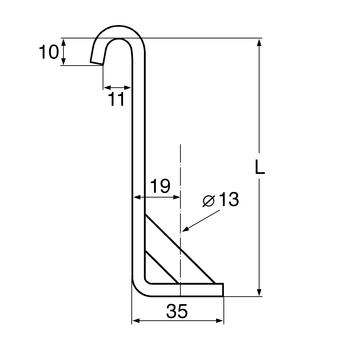

TypeL
[mm]
b x s
[mm]
W
[kg]
Quantity
[pack]
Part
number
SPK 15015035 x 50.2910 116017
