ASA F 100/160
Welding Adapter ASA-4KT F100/160 HCP
Group: A828
Part number 113410

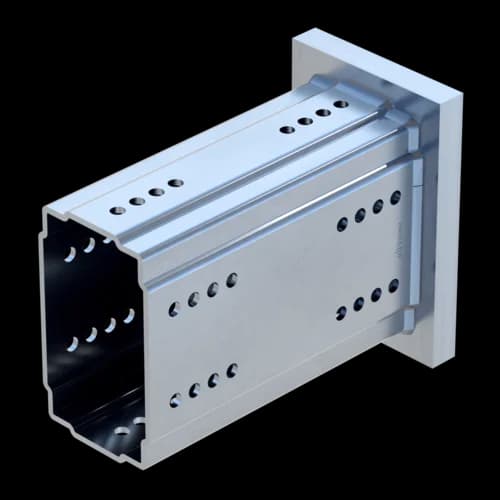

Welding plate with square insert to receive siFramo section
Welding plate with square insert to receive siFramo section

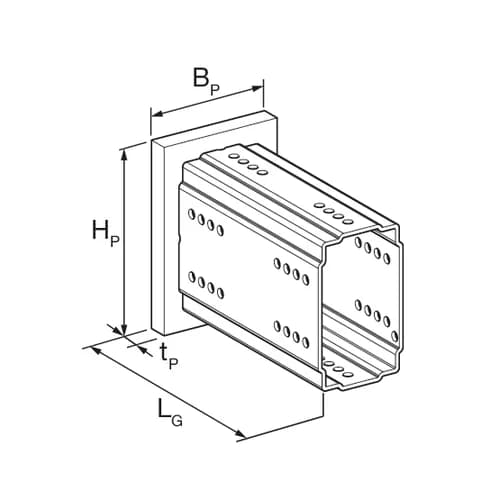

Technical Data
BP | 120 mm |
HP | 120 mm |
LG | 241 mm |
tP | 20 mm |
Mounting Plate 100 with welded on square joint.
Load range
-VX,perm. | 68,20 kN |
VX,perm. | 68,20 kN |
-VY,perm. | 67,90 kN |
VY,perm. | 67,90 kN |
-VZ,perm. | 79,20 kN |
VZ,perm. | 79,20 kN |
-MX,perm. | 11,3 kNm |
MX,perm. | 11,3 kNm |
-MY,perm. | 13,1 kNm |
MY,perm. | 13,10 kNm |
-MZ,perm. | 8,6 kNm |
MZ,perm. | 8,6 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
CE mark (Declaration of performance see downloads)
Installation
The welding plate of the ASA can be welded directly without previous treatment due to a corrosion-resistant weld-thru coating which is compatible with both the HDG surface of the siFramo section and the health and safety requirements of the welding process. Once the ASA adapter has been connected, the coating may also receive paint without previous treatment.

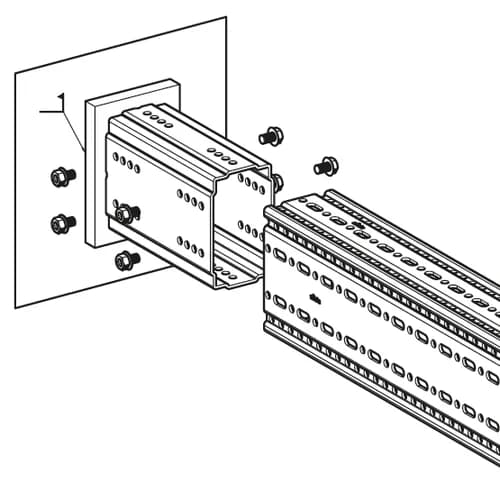

The siFramo section must be connected to the Welding Adapter ASA with 4 x Self Forming Screw FLS. 8 pieces of Self Forming Screws are to be used for the Beam Section TP F 100/160, whereas 4 Self Forming Screws have to be screwed together on the flat flanks' opposite sides.
