SB F 80/30 - 40

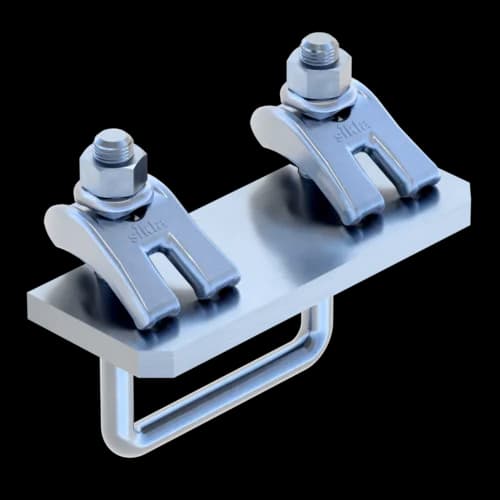

U-Holder SB F 80/30-40 HCP
Group: A439
Part number 115839
Pre-assembled component for clamping Beam Section F80 to the flange side of traditional steel sections
Technical Data
H | 114 mm |
H1 | 60 mm |
Ma | M12 |
BP | 155 mm |
tP | 10 mm |
LP | 60 mm |
Holder with thread M12
1 Plate
2 Beam Clips SPA 5P AU
2 Hexagon nuts M12
Load range
-VZ,perm. | 16,00 kN |
VZ,perm. | 16,00 kN |
Please compare the suitable type's dimensions by means of the siMotec user guideline to get the permissible lateral forces and torques.
Technical specifications
Material base body | steel |
Class | 8.8 |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Installation

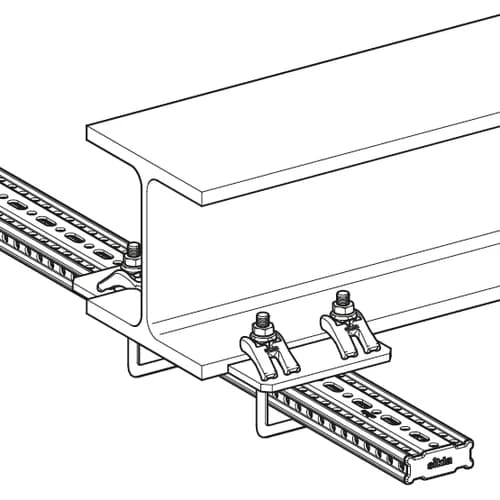

U-holder to be used in pairs.
Type 16 up to flange thickness 16 mm
Type 40 up to flange thickness 40 mm
Tightening torques:
| Type | Tightening torque [Nm] |
|---|---|
| SB F 80-16 | 40 |
| SB F 80-40 | 85 |
| SB F 80/30-16 | 40 |
| SB F 80/30-40 | 85 |
