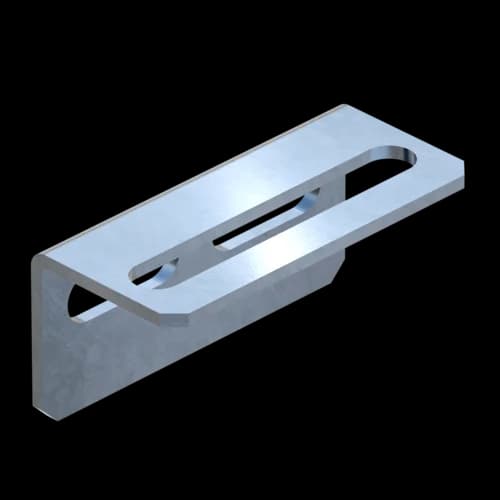

Type 1/2" - 1 1/2"
Type 2" - 3"

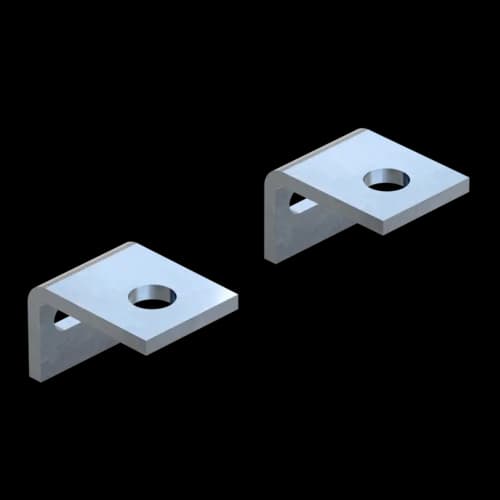

Type 4" - 6"
Type 8" - 12"

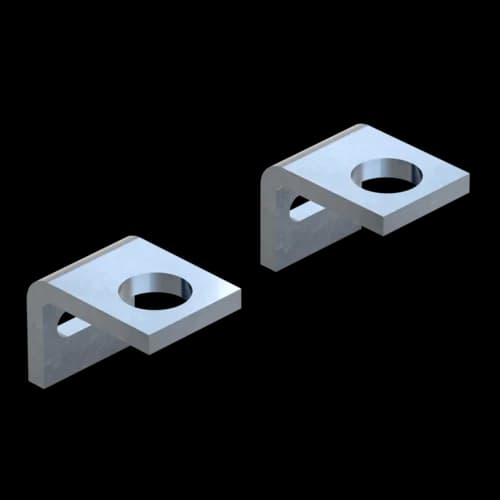

Type 378 - 530
U Bolt Fastening UB F HCP
Group: A430
U-Bolt fastening for connecting standard U-Bolts required for pipework to supporting Beam Sections, Cantilever Brackets and Beam Brackets F80 or F100
Overview of Types
General Information
U Bolt Fastening to connect standard U-Bolts required for pipework to the supporting Beam Sections, Cantilever Brackets and Beam Brackets F80 or F100.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VZ,perm. |
UB F 1/2'' - 1 1/2'' HCP | 0,80 kN |
UB F 2'' - 3'' HCP | 1,70 kN |
UB F 4'' - 6'' HCP | 2,10 kN |
UB F 8'' - 12'' HCP | 3,70 kN |
UB F 378 - 530 HCP | 3,70 kN |
