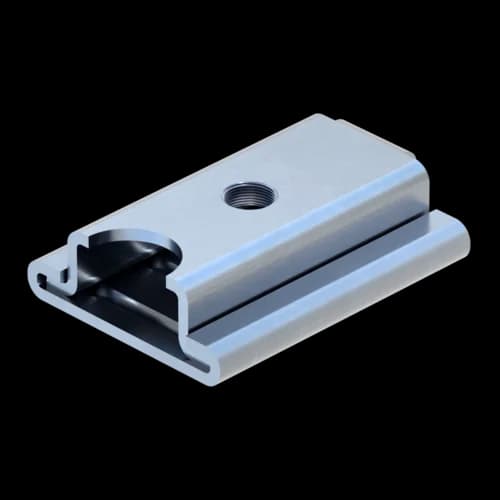

Slide Set GS 1G
Group: 1336
Slide set for mounting small pipelines with possible length elongation
Space-saving design suitable for smaller centre distances, especially with pipe clamps Ratio S and LS
Stop at the skid prevents sliding and guides rising pipes; guiding corrugations ensure exact 90° arrangement
Overview of Types
General Information
Slide Set for mounting of small pipe lines with possible elongation of length. Space-saving and thus also to be used for smaller centre distances, especially in combination with pipe clamps Ratio S and LS. The stop at the skid avoids the pipe line from sliding and at the same time is a comfortable guide for rising pipes. Guiding corrugations guarantee the exact 90° arrangement and avoid the screwing up of the slide set.
Certification
Technical specifications
Sliding Friction μ | 0,13 |
Static Friction μ0 | 0,15 |
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. | VZ,perm. |
GS 1G | 0,60 kN | 1,20 kN |
Type | MX,perm. |
GS 1G | 0,02 kNm |
Software
This product is available in the following software.
Installation

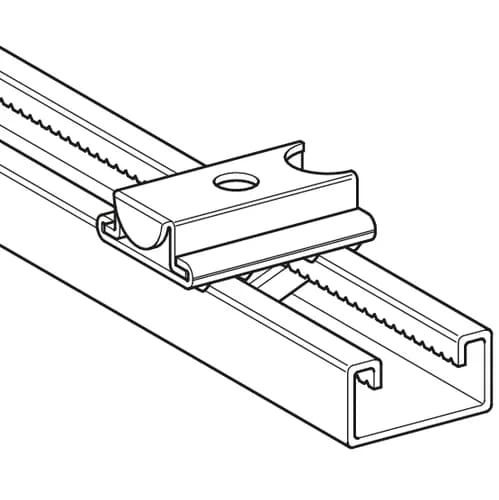

Connection to Channel System 41, ideally use flange screw SCR FLA M10 x 20 A4. Fixation with hexagon bolt M8 or M10 is also possible.
Lever arm L(max): 75 mm
Maximum sliding distance:: 45 mm
