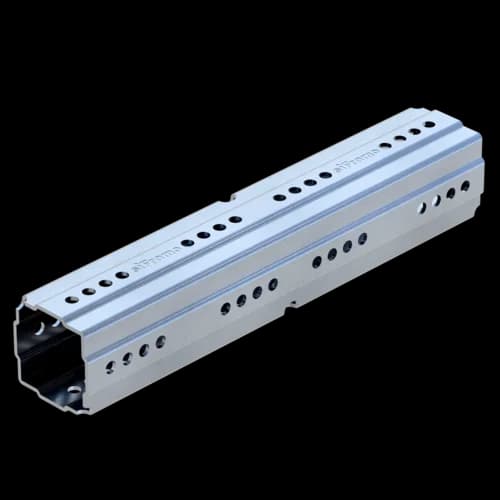

Profile Coupling PK-4KT F 80 HCP
Group: A430
Part number 111445
Internal splice connecting element for Beam Section TP F 80, particularly suitable for vertical extension
For horizontal application, the bending moment must be considered
Technical Data
B | 72 mm |
H | 72 mm |
L | 382.5 mm |
t | 3 mm |
Load range
-VX,perm. | 10,00 kN |
VX,perm. | 10,00 kN |
-MY,perm. | 5,09 kNm |
MY,perm. | 5,09 kNm |
-MZ,perm. | 5,09 kNm |
MZ,perm. | 5,09 kNm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Installation
To be fastened with 2 x 4 FLS F Self Forming Screws. For optimal bending moment, distance between screws to be as far from each other as possible.
Notice:
Self Forming Screw FLS F to be fastened on two sides with a distance of minimum of 100mm (for type 4kt) / 50 mm (for type 8kt) and to be fastened symmetrically. To optimise the bending moment the FLS F should be installed to maintain the pipe weight of the effective flow - i.e. screws are located top and bottom for horizontal cross bars not sideways.
