JOI 41 T

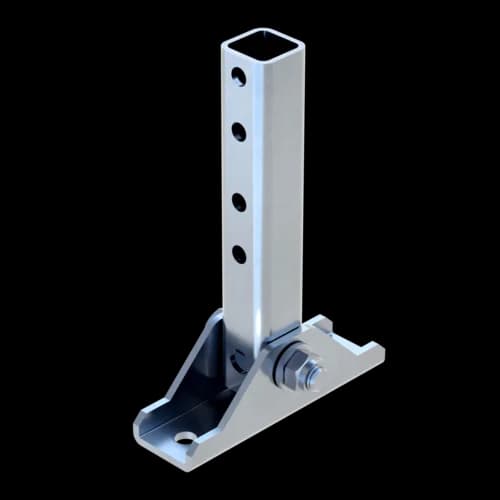

Pivot Joint JOI 41 T HCP
Group: 1842
Part number 197615
Connects Channels MS 41 to bent structures such as tunnels or curved roof frames under various angles
Especially suitable as brace support
Channel opening can be arranged in all directions
Technical Data
Pre-assembled with captive screw and nut.
Load range
-VZ,perm. | 4,40 kN |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
Installation

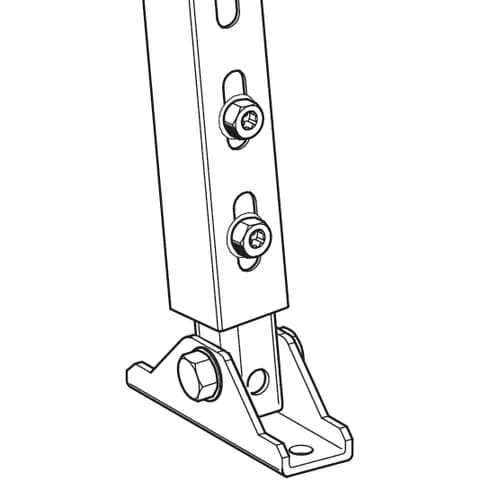

Fixation to walls, ceiling and floors by means of dowels. Adjustment of angle during assembly. Easy, fast and secure assembly of the channel with two Self Forming Screws FLS F.
