GE F 100/160 - 100
Group: A437
Part number 115855
For supporting single-arm cantilevers in combination with the siFramo 100/160 support system
Suitable for stiffening frame structures
Angle α continuously adjustable between 25° and 155°

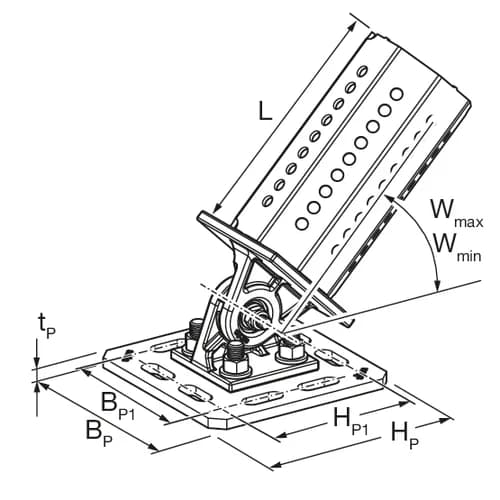

BP | 160 mm |
BP1 | 122 mm |
HP | 160 mm |
HP1 | 122 mm |
L | 180 mm |
tP | 8 mm |
Wmin | 25° |
Wmax | 155° |

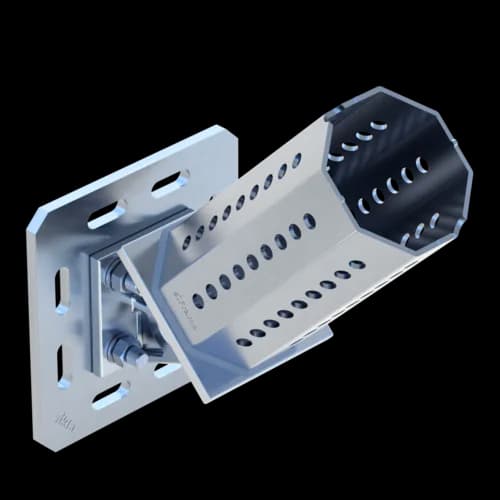

Pivot Joint GE F 100/160 with pre-attached 100/160 joining plate
-VX,Rd | 16,5 kN |
VX,Rd | 16,5 kN |
The specified load values are design loads Rd and include a partial safety factor γM2 = 1.25 (DIN EN 1993-1-8:2025-04, Table 4.1)
A partial safety factor of γG = 1.35 (DIN EN 1990:2021-10, Table A1.2(B)) must be taken into account for permanent loads.
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Also available with DualShield for high corrosion protection within C5H environments.
