GE F 80 - 80
Pivot Joint GE F 80-F 80 HCP
Group: A437
Part number 113835
Bracing element for single-arm cantilevers with System siFramo 80 and for reinforcement of frame constructions
Angle continuously adjustable between 25° and 155°

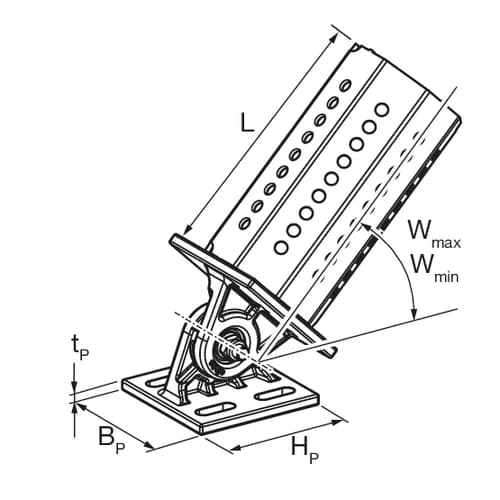

Technical Data
BP | 80 mm |
HP | 80 mm |
L | 140 mm |
tP | 8 mm |
Wmin | 25° |
Wmax | 155° |
Load range
-VX,perm. | 13,70 kN |
VX,perm. | 13,70 kN |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Installation
Attachment of Joint GE F 80 to Beam Section TP F 80 by means of 4 Self Forming Screws FLS F at the base plate. The support profile TP F 80 plugged onto the octagon is also attached by means of 4 Self Forming Screws, so 8 Self Forming Screws are necessary in total.
After installation at the desired angle the screws have to be tightened with 40 Nm.
Angle: 25° - 155°
