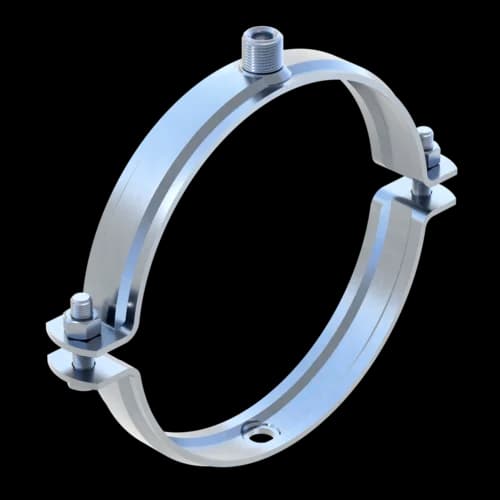

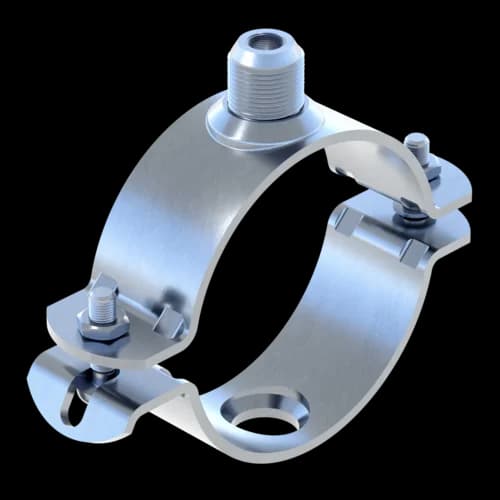

Pipe Clamp STABIL D-3G

Group: 1240

Installation of pipes required for all M&E services

Suitable for ceiling, floor and wall mounting.

Select a Type

Overview of Types
General Information
Installation
Documents

Overview of Types

General Information

For the installation of pipes required for all M&E services in industrial, residential and public buildings.

Certification

VdS-Approval No. G4920027 up to 8"
FM Approval for sizes 31 - 173 (another pipe clamp with FM Approval is: Stabil D-M16)

Technical specifications

Material base body	steel
Material connecting element	steel
Surface	electro galvanized (Fe//Zn)
Corossion class	C2

Load range

Type	-V_Z,perm.
STABIL D-3G 15- 19	2,00 kN
STABIL D-3G 20- 24	2,00 kN
STABIL D-3G 25 - 30	2,00 kN
STABIL D-3G 31- 35	5,00 kN
STABIL D-3G 40- 45	5,00 kN
STABIL D-3G 48- 53	5,00 kN
STABIL D-3G 54- 59	5,00 kN
STABIL D-3G 60- 65	5,00 kN
STABIL D-3G 67- 72	5,00 kN
STABIL D-3G/M 76- 81	5,00 kN
STABIL D-3G/M 82- 87	5,00 kN
STABIL D-3G/M 88- 93	5,00 kN
STABIL D-3G/M 102- 108	5,00 kN
STABIL D-3G/M 110- 116	5,00 kN
STABIL D-3G/M 124- 129	5,00 kN
STABIL D-3G 133-140	8,00 kN
STABIL D-3G 140-148	8,00 kN
STABIL D-3G 149-155	8,00 kN
STABIL D-3G 159-165	8,00 kN
STABIL D-3G 167-173	8,00 kN
STABIL D-3G 176-184	12,50 kN
STABIL D-3G 188-194	12,50 kN
STABIL D-3G 199-205	12,50 kN
STABIL D-3G 207-216	12,50 kN
STABIL D-3G 219-225	12,50 kN
STABIL D-3G 244-250	12,50 kN
STABIL D-3G 267-273	12,50 kN
STABIL D-3G 278-284	12,50 kN
STABIL D-3G 297-303	12,50 kN
STABIL D-3G 310-316	12,50 kN

Software

This product is available in the following software.

Installation

For FM applications use M10 only.
For VdS applications use M10 only if size is >2' to 4'.

Tightening torques:

Size range [mm]	Tightening torque [Nm]
15 - 72	2
76 - 129	3
133 - 173	5
176 - 316	10

Documents

Approvals / VdS

VdS Approval - Sikla Stabil D-3G wo/lining - G4920027
PDF (0.96MB)

Overview of Types

Info	Type	Size min.	Size max.	Thread connection	Weight	Quantity	Part number
	STABIL D-3G 15- 19	15.00 mm	19.00 mm	M8/M10/M16	0.073 kg/pcs.	50 pcs.	107705

	STABIL D-3G 20- 24	20.00 mm	24.00 mm	M8/M10/M16	0.078 kg/pcs.	50 pcs.	107714

	STABIL D-3G 25 - 30	25.00 mm	30.00 mm	M8/M10/M16	0.083 kg/pcs.	50 pcs.	107723

	STABIL D-3G 31- 35	31.00 mm	35.00 mm	M8/M10/M16	0.121 kg/pcs.	50 pcs.	107015

	STABIL D-3G 40- 45	40.00 mm	45.00 mm	M8/M10/M16	0.137 kg/pcs.	50 pcs.	107024

	STABIL D-3G 48- 53	48.00 mm	53.00 mm	M8/M10/M16	0.151 kg/pcs.	50 pcs.	107033

	STABIL D-3G 54- 59	54.00 mm	59.00 mm	M8/M10/M16	0.164 kg/pcs.	50 pcs.	107042

	STABIL D-3G 60- 65	60.00 mm	65.00 mm	M8/M10/M16	0.178 kg/pcs.	50 pcs.	107051

	STABIL D-3G 67- 72	67.00 mm	72.00 mm	M8/M10/M16	0.185 kg/pcs.	50 pcs.	107060

	STABIL D-3G/M 76- 81	76.00 mm	81.00 mm	M8/M10/M16	0.288 kg/pcs.	25 pcs.	115759

	STABIL D-3G/M 82- 87	82.00 mm	87.00 mm	M8/M10/M16	0.304 kg/pcs.	25 pcs.	115761

	STABIL D-3G/M 88- 93	88.00 mm	93.00 mm	M8/M10/M16	0.317 kg/pcs.	25 pcs.	115762

	STABIL D-3G/M 102- 108	102.00 mm	108.00 mm	M8/M10/M16	0.331 kg/pcs.	25 pcs.	115763

	STABIL D-3G/M 110- 116	110.00 mm	116.00 mm	M8/M10/M16	0.36 kg/pcs.	25 pcs.	115764

	STABIL D-3G/M 124- 129	124.00 mm	129.00 mm	M8/M10/M16	0.378 kg/pcs.	25 pcs.	115766

	STABIL D-3G 133-140	133.00 mm	140.00 mm	M8/M10/1/2"	0.781 kg/pcs.	10 pcs.	107130

	STABIL D-3G 140-148	140.00 mm	148.00 mm	M8/M10/1/2"	0.8 kg/pcs.	10 pcs.	115885

	STABIL D-3G 149-155	149.00 mm	155.00 mm	M8/M10/1/2"	0.84 kg/pcs.	10 pcs.	107149

	STABIL D-3G 159-165	159.00 mm	165.00 mm	M8/M10/1/2"	0.843 kg/pcs.	10 pcs.	107158

	STABIL D-3G 167-173	167.00 mm	173.00 mm	M8/M10/1/2"	0.926 kg/pcs.	10 pcs.	107167

	STABIL D-3G 176-184	176.00 mm	184.00 mm	M8/M10/1/2"	1.015 kg/pcs.	10 pcs.	107176

	STABIL D-3G 188-194	188.00 mm	194.00 mm	M8/M10/1/2"	1.03 kg/pcs.	10 pcs.	107185

	STABIL D-3G 199-205	199.00 mm	205.00 mm	M8/M10/1/2"	1.071 kg/pcs.	10 pcs.	107194

	STABIL D-3G 207-216	207.00 mm	216.00 mm	M8/M10/1/2"	1.146 kg/pcs.	10 pcs.	148939

	STABIL D-3G 219-225	219.00 mm	225.00 mm	M8/M10/1/2"	1.165 kg/pcs.	10 pcs.	107200

	STABIL D-3G 244-250	244.00 mm	250.00 mm	M8/M10/1/2"	1.282 kg/pcs.	10 pcs.	107219

	STABIL D-3G 267-273	267.00 mm	273.00 mm	M8/M10/1/2"	1.343 kg/pcs.	10 pcs.	107228

	STABIL D-3G 278-284	278.00 mm	284.00 mm	M8/M10/1/2"	1.429 kg/pcs.	10 pcs.	107237

	STABIL D-3G 297-303	297.00 mm	303.00 mm	M8/M10/1/2"	1.5 kg/pcs.	10 pcs.	107246

	STABIL D-3G 310-316	310.00 mm	316.00 mm	M8/M10/1/2"	1.538 kg/pcs.	10 pcs.	147600
