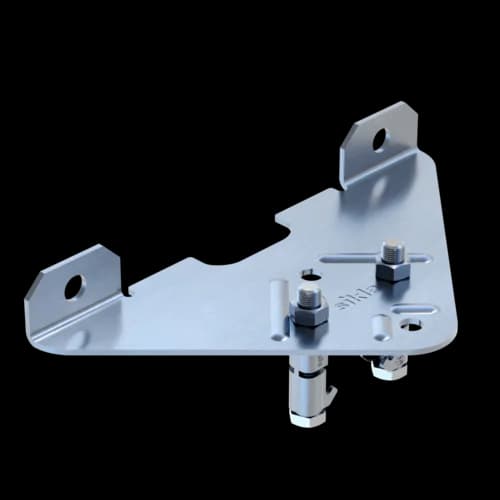

Lateral Brace CFB 46 HCP
Group: B136
Part number 803640
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: B136
Part number 803640
B | 260 mm |
B1 | 56 mm |
B2 | 205 mm |
B3 | 56.5 mm |
d | 13 mm |
d1 | 11 mm |
d2 | 12 mm |
H | 33 mm |
H1 | 15 mm |
L | 135 mm |
L1 | 18 mm |
L2 | 20 mm |
L3 | 62.5 mm |
L4 | 78 mm |
t | 3 mm |
VY,perm. | 5,31 kN |
MZ,perm. | 0,9 kNm |
Primary element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Certification
