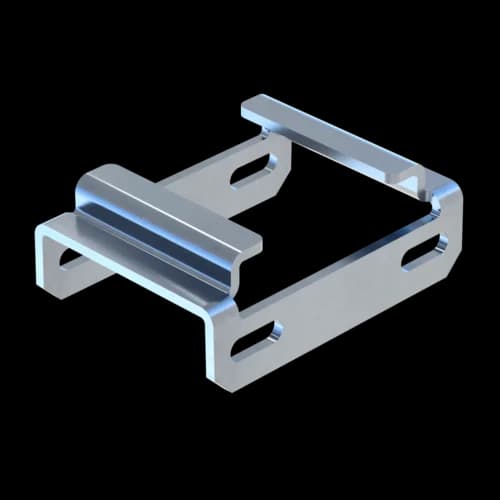

Guiding Bracket FW F100 HCP
Group: A705
Part number 113088
Element for converting siMotec Sliding Pipe Shoes to Guided Pipe Shoes
Suitable for siFramo F100 beam sections
Technical Data
B | 155 mm |
B1 | 105 mm |
B2 | 77 mm |
B3 | 110 mm |
L | 111 mm |
L1 | 96 mm |
H1 | 16.5 mm |
t | 5 mm |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Certification
Installation
Connection to Beam Sections TP F 100 and 100/160 by means of 4 Self-Forming Screws FLS F.
