MW S 90/60/90°
Fixing Bracket MW S 90/60/90° HCP
Group: 1826
Part number 162072
Designed for general mounting purposes as a direct lateral attachment link in binding and bridging beams of concrete or wood
Can serve as a connecting bracket for framework structures consisting of channels

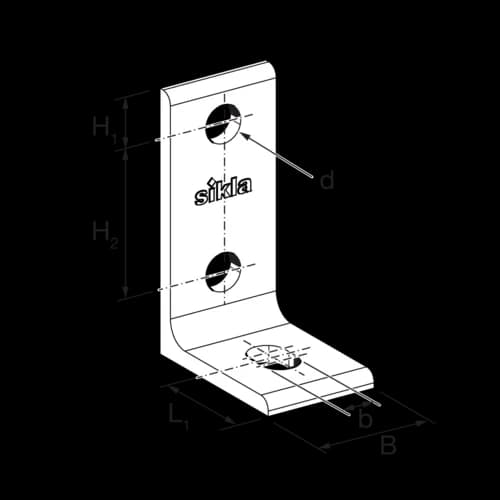

Technical Data
B | 40 mm |
b | 13 mm |
d | 13 mm |
H1 | 15 mm |
H2 | 50 mm |
L1 | 26.5 mm |
Angle steel profile DIN 1029: 90/60/6
Load range
VZ,perm. | 7,50 kN |
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Certification
Installation
For sprinkler systems smaller than DN 150.
